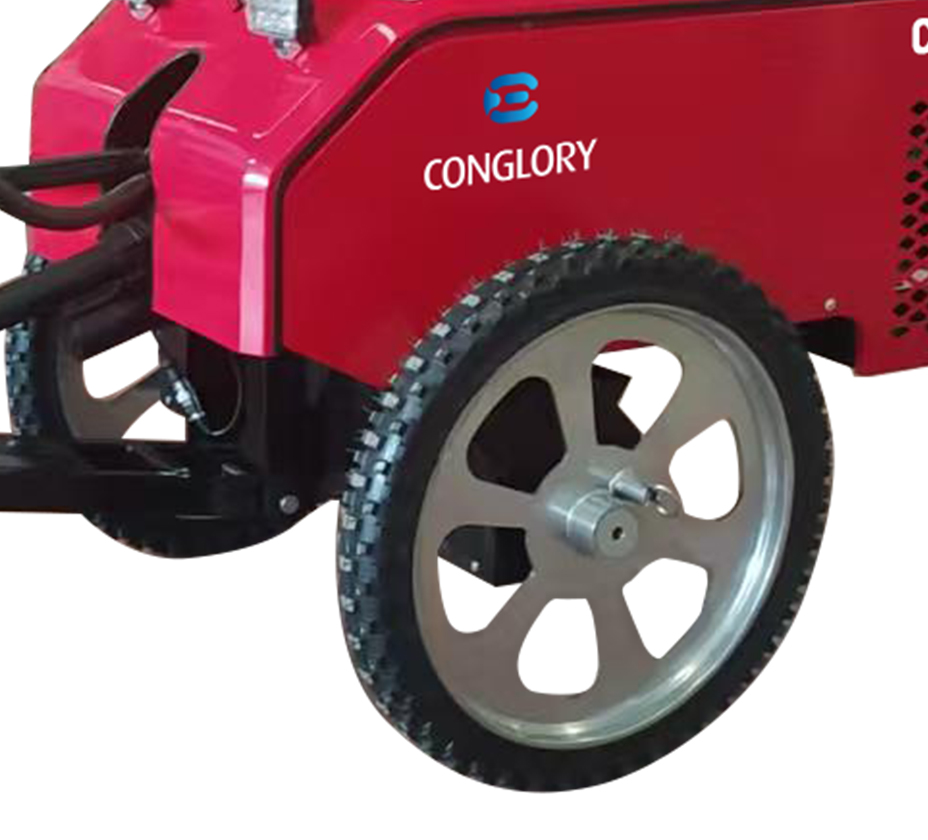

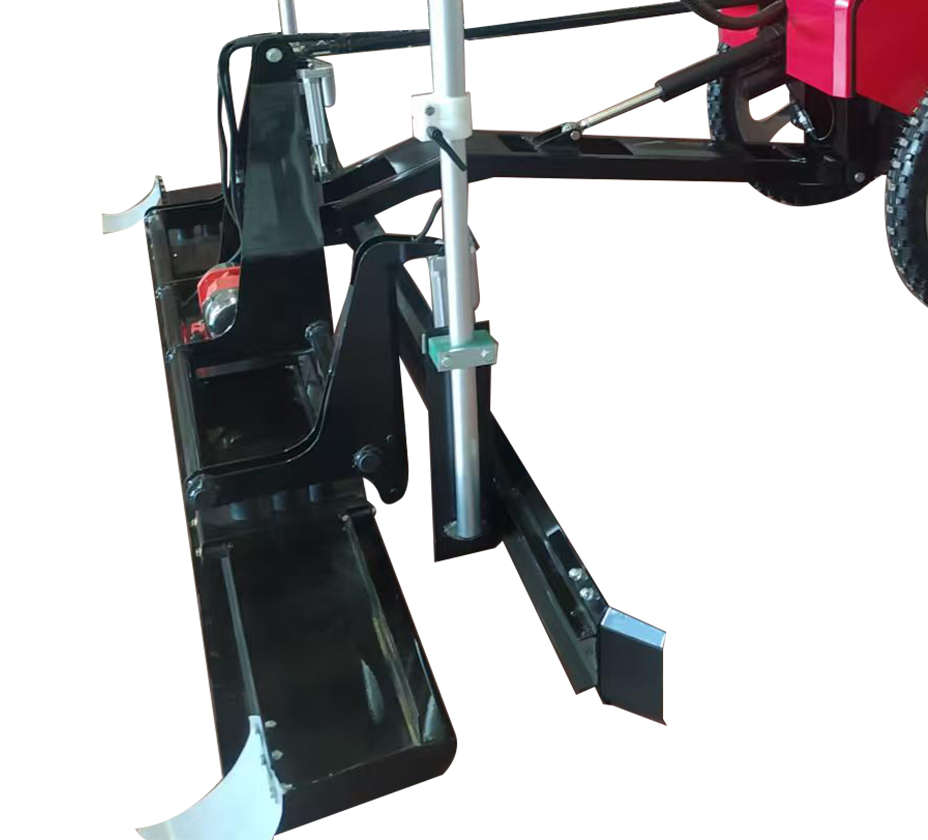

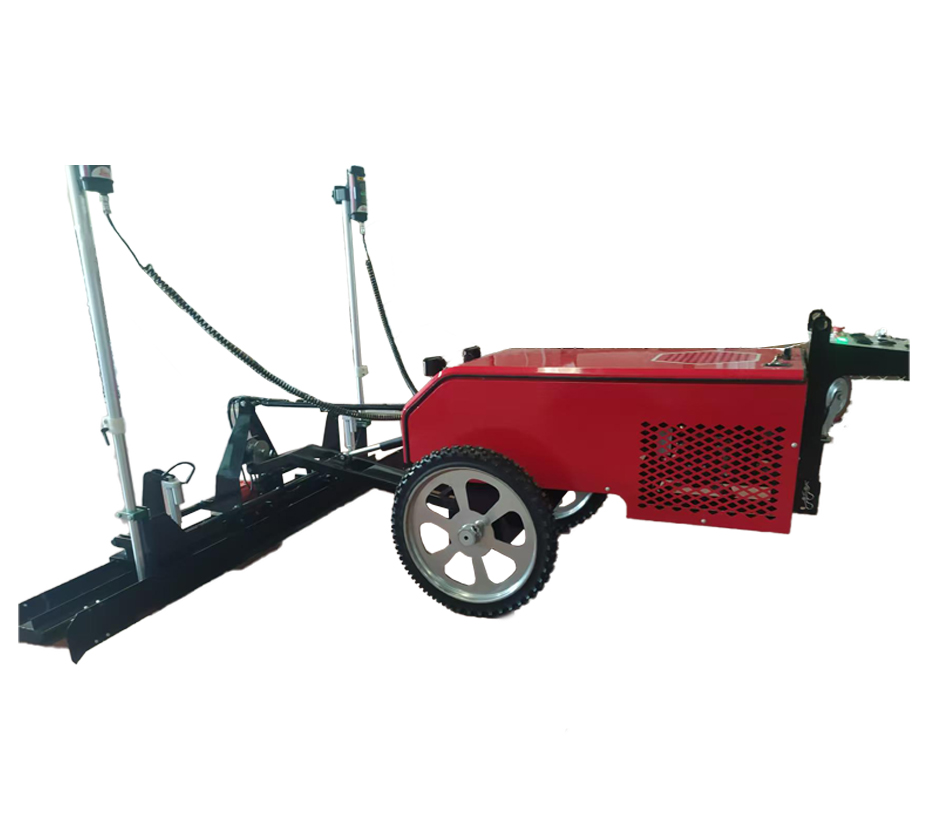

LASER SCREED MACHINE CTP-2525

MODELCTP-2525
EngineHonda GX160
Power4.0 kW
Fuel Capacity17 L (Up to 18 hours of continuous operation)
Fuel Consumption0.8–1.3 L/h
TransmitterTopcon H5A Laser Transmitter
ReceiverLeica MS720 Laser Receiver
Suspension TypeIndependent Screed Head Suspension System
Vibrating Plate Width2525 mm
Leveling Thickness50–250 mm
Exciting Force2000 N
Vibration Motor Speed3600 rpm
Drive SystemServo Drive Motor
Travel ModeAutomatic Travel with Electronic Servo Control System
Travel Speed0–28 m/min
Operating Speed4–20 m/min
Tail Wheel ControlManual Lifting
Travel TiresSolid Anti-slip, Anti-puncture Narrow Tires (Optional Pneumatic Wide Tires)

商品介绍

需要帮助选择合适的设备?

提交选型需求,我们会根据您的施工场景提供配置建议和报价方案。

LASER SCREED MACHINE CTP-2525

选型信息(可选规格)

仅保留真正影响询价与配置结果的可选项。

MODEL

* 为必选项

商品介绍

LASER SCREED MACHINE CTP-2525

LASER SCREED MACHINE CTP-2525

产品 ID
CTP-2525
当前选中
CTP-2525
分类
Laser Screed
MODEL
CTP-2525

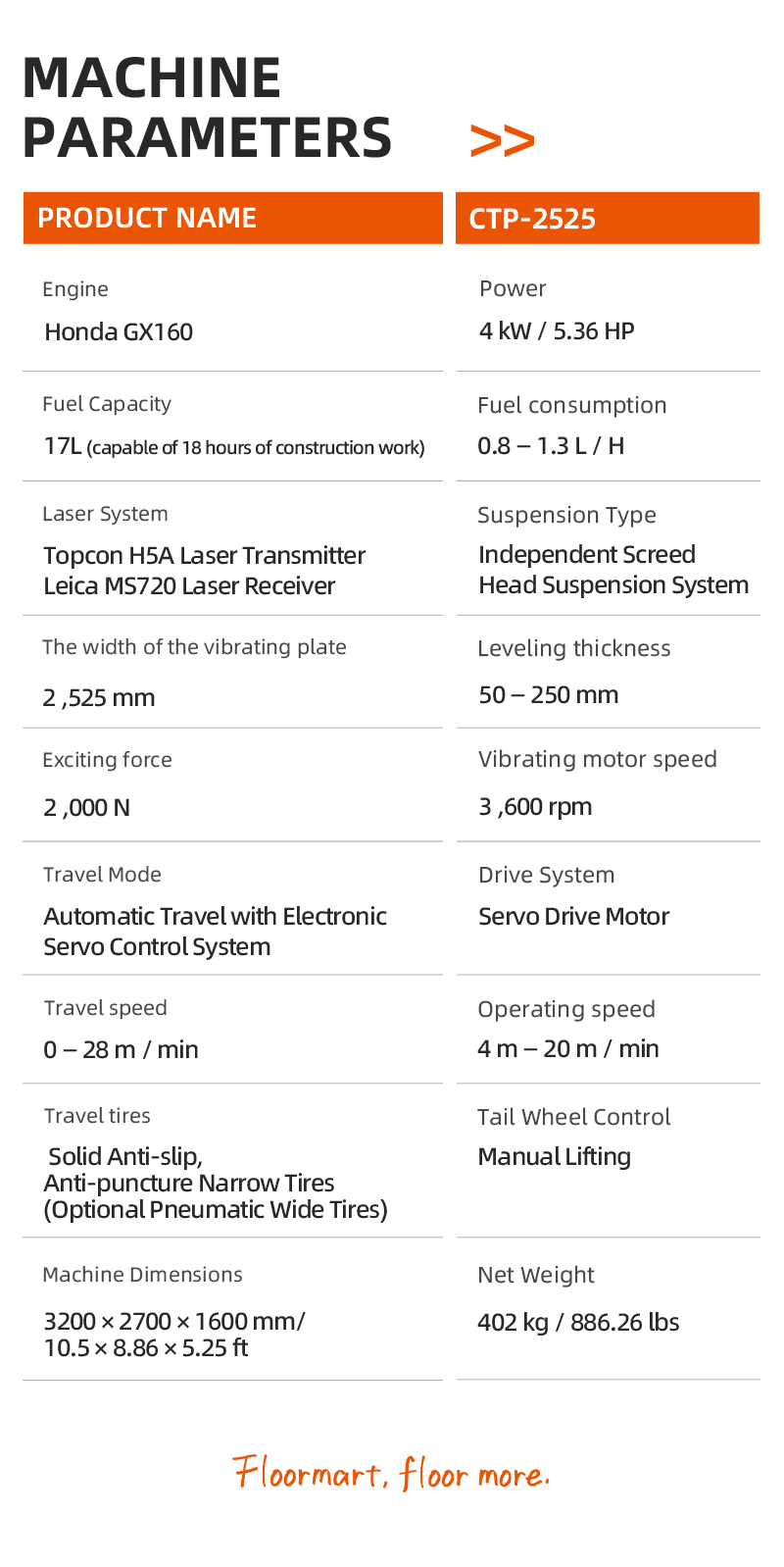

技术参数

当前选定规格

MODEL
CTP-2525
Engine
Honda GX160
Power
4.0 kW
Fuel Capacity
17 L (Up to 18 hours of continuous operation)
Fuel Consumption
0.8–1.3 L/h

注:产品持续升级中,技术参数如有更新,请以实际销售方案为准。
