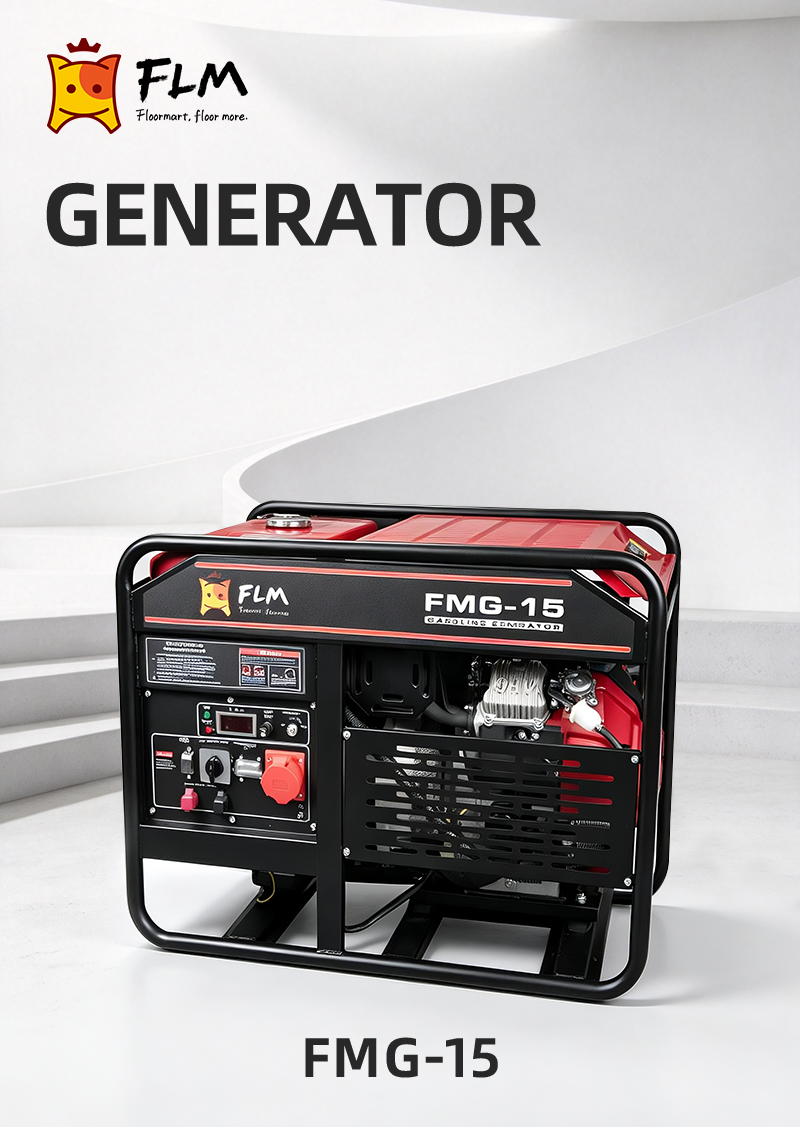

Power Generator FMG-15

1 / 8

Industrial Product

Power Generator FMG-15

Description

Power Generator FMG-15

Product Overview

Product Summary

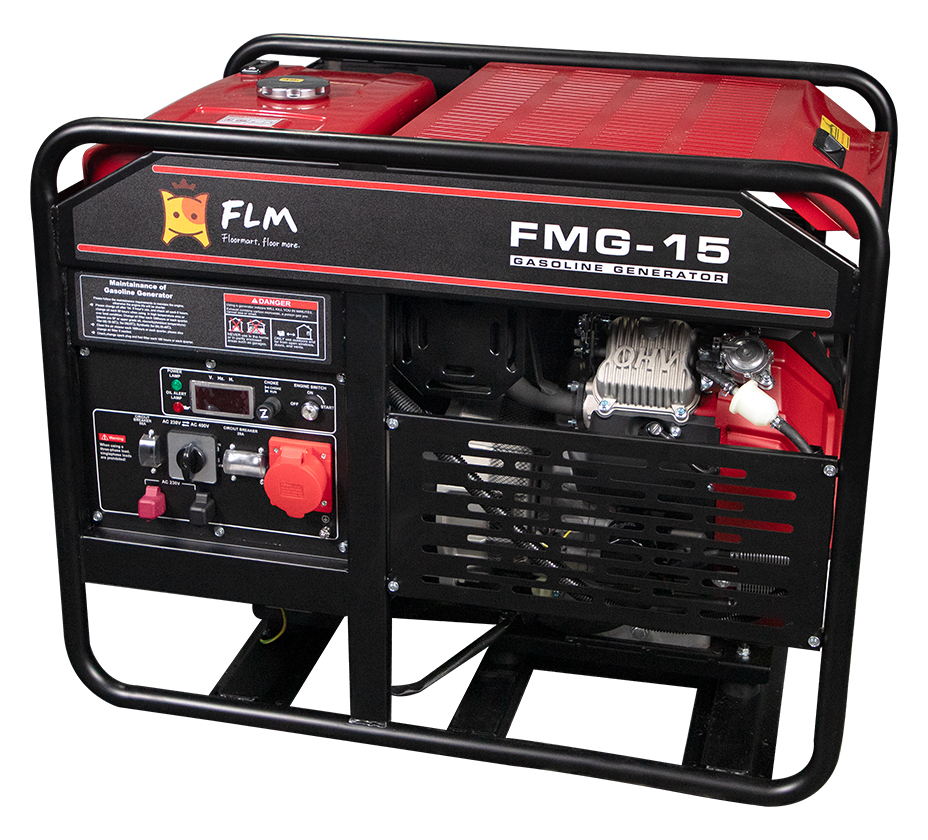

Power Generator FMG-15

Power Generator

Product Code:FMG-15

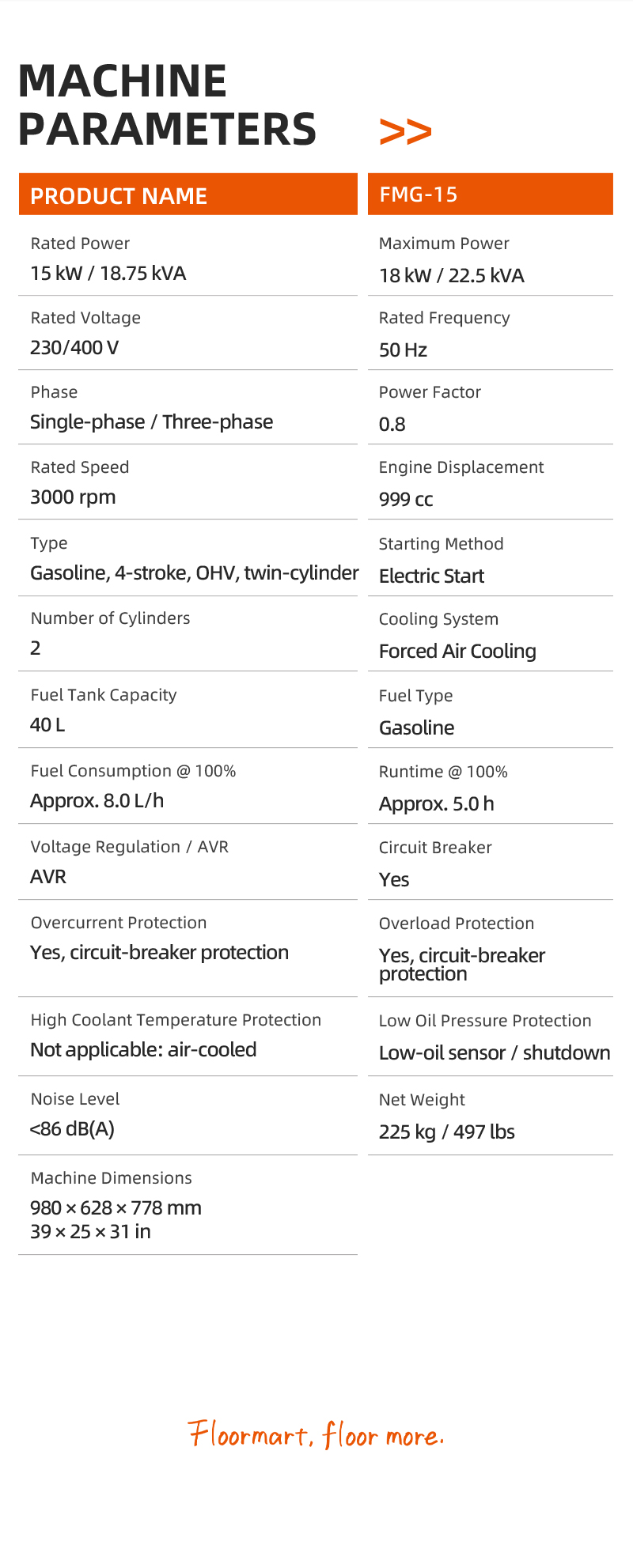

Specifications

Model: FMG-15

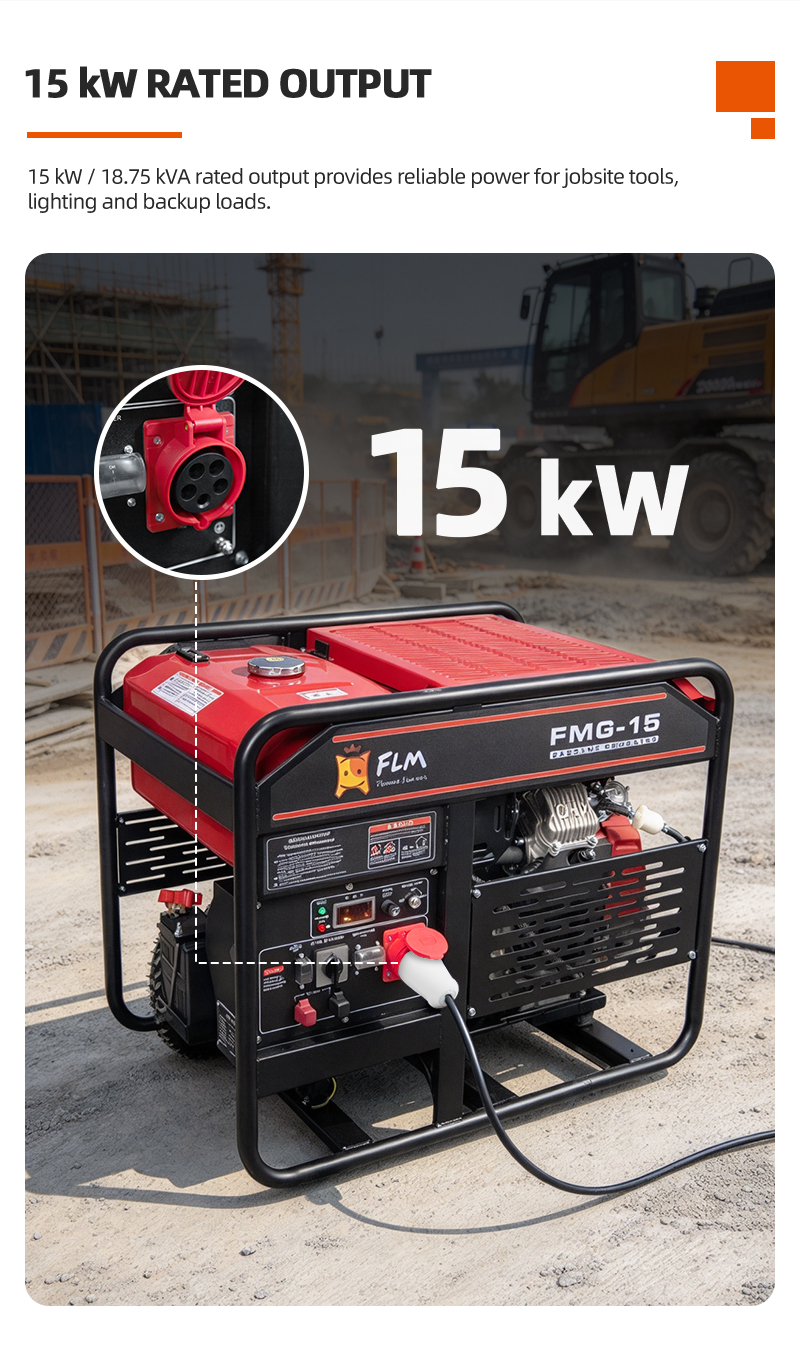

Rated Power: 15 kW / 18.75 kVA
Maximum Power: 18 kW / 22.5 kVA
Rated Voltage: 230 / 400 V
Rated Frequency: 50 Hz
Phase: Single-phase / Three-phase
Power Factor: 0.8
Rated Speed: 3000 rpm
Voltage Regulation / AVR: AVR

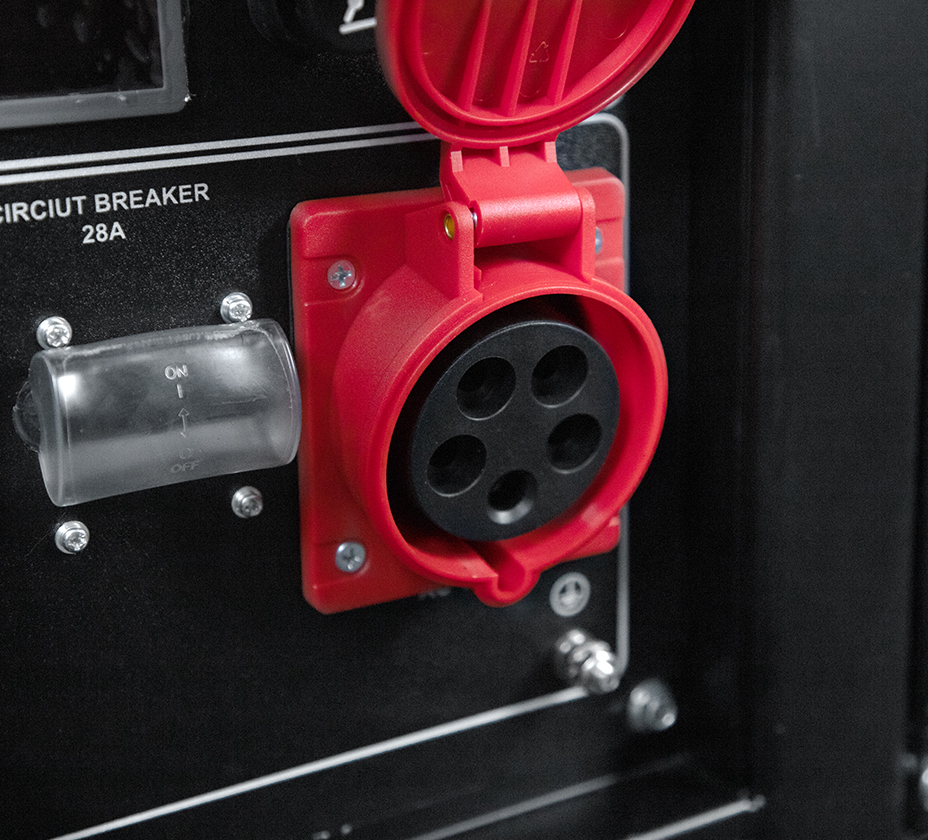

Circuit Breaker: Yes

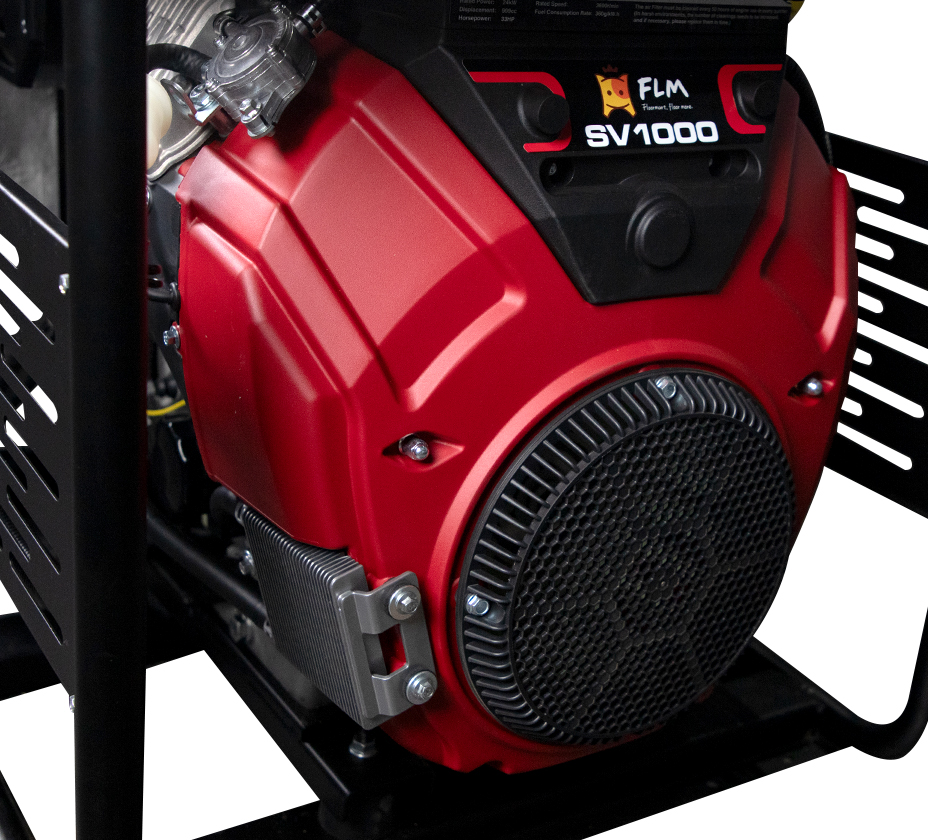

Engine Displacement: 999 cc

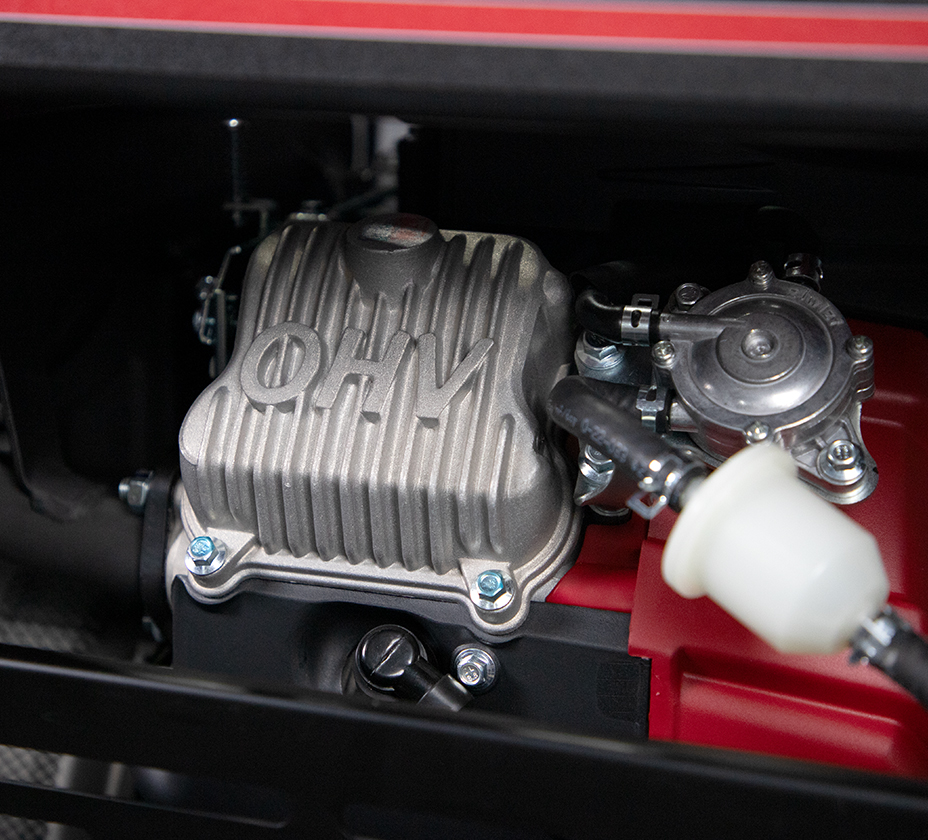

Type: Gasoline, 4-stroke, OHV, twin-cylinder

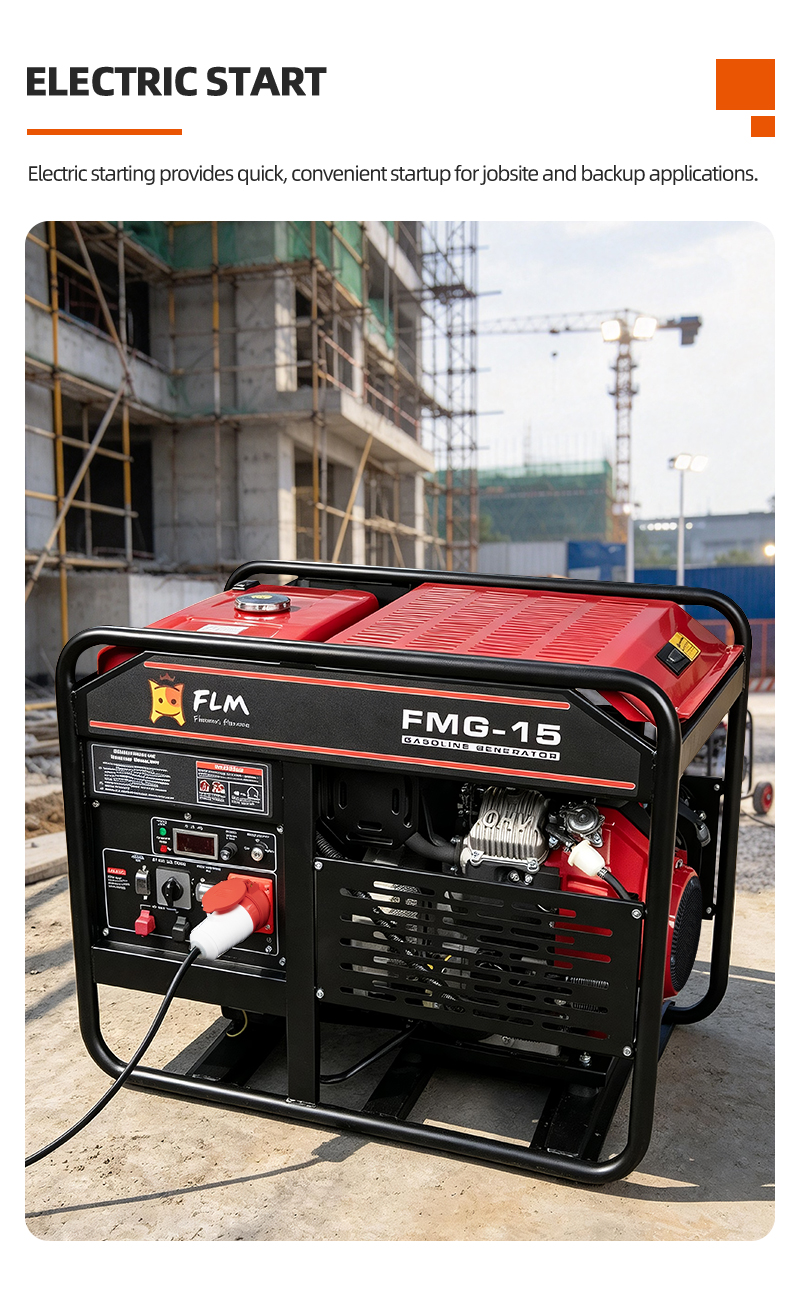

Starting Method: Electric Start
Number of Cylinders: 2
Cooling System: Forced Air Cooling
Fuel Tank Capacity: 40 L
Fuel Type: Gasoline
Fuel Consumption @ 100%: Approx. 8.0 L/h
Runtime @ 100%: Approx. 5.0 h

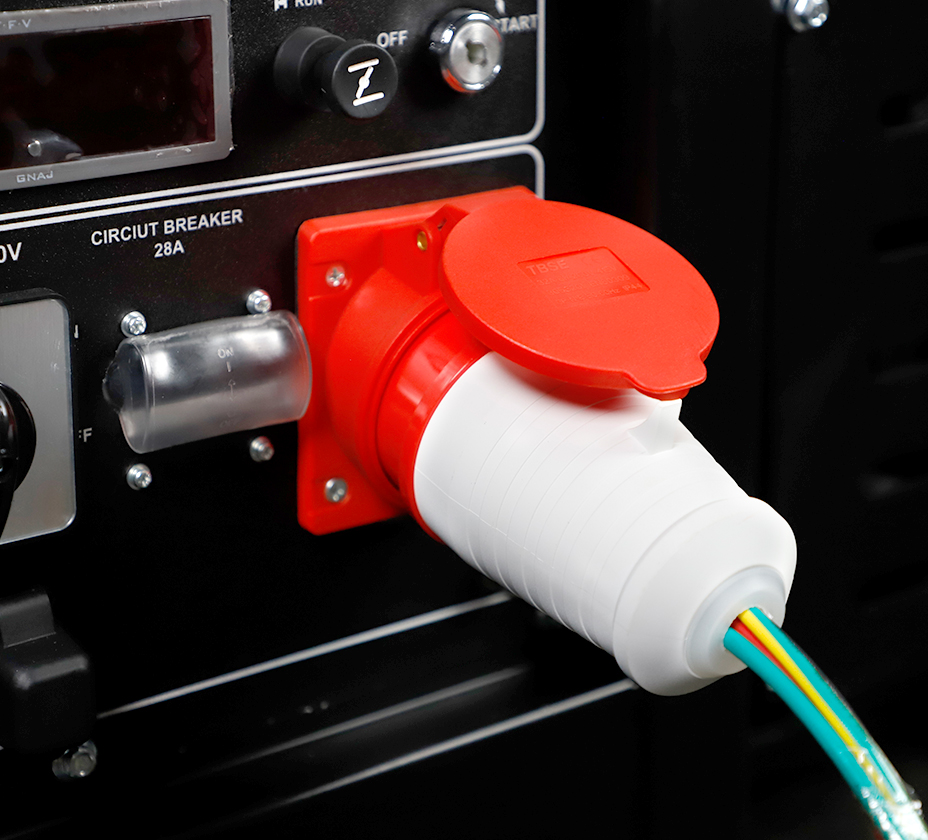

Overcurrent Protection: Yes, circuit-breaker protection
Overload Protection: Yes, circuit-breaker protection
High Coolant Temperature Protection: Not applicable: air-cooled
Low Oil Pressure Protection: Low-oil sensor / shutdown
Noise Level: <86 dB(A)
Net Weight: 225 kg / 497 lbs
Machine Dimensions: 980 × 628 × 778 mm / 39 × 25 × 31 in

Need help selecting the right setup?

Send us your project requirements and we will recommend a fitting configuration and quote plan.

1 / 8

Power Generator FMG-15

Configuration Options

Only keep the variants that really affect quote and selection.

Model

* Required options

Product Overview

Power Generator FMG-15

Power Generator FMG-15

Product ID: FMG-15
Selected: FMG-15
Category: Power Generator
Model: FMG-15

Technical Parameters

Current selected specification

Model: FMG-15
Rated Power: 15 kW / 18.75 kVA
Maximum Power: 18 kW / 22.5 kVA
Rated Voltage: 230 / 400 V
Rated Frequency: 50 Hz

Note: Product specifications may change with continuous upgrades. Please refer to the final sales proposal.
