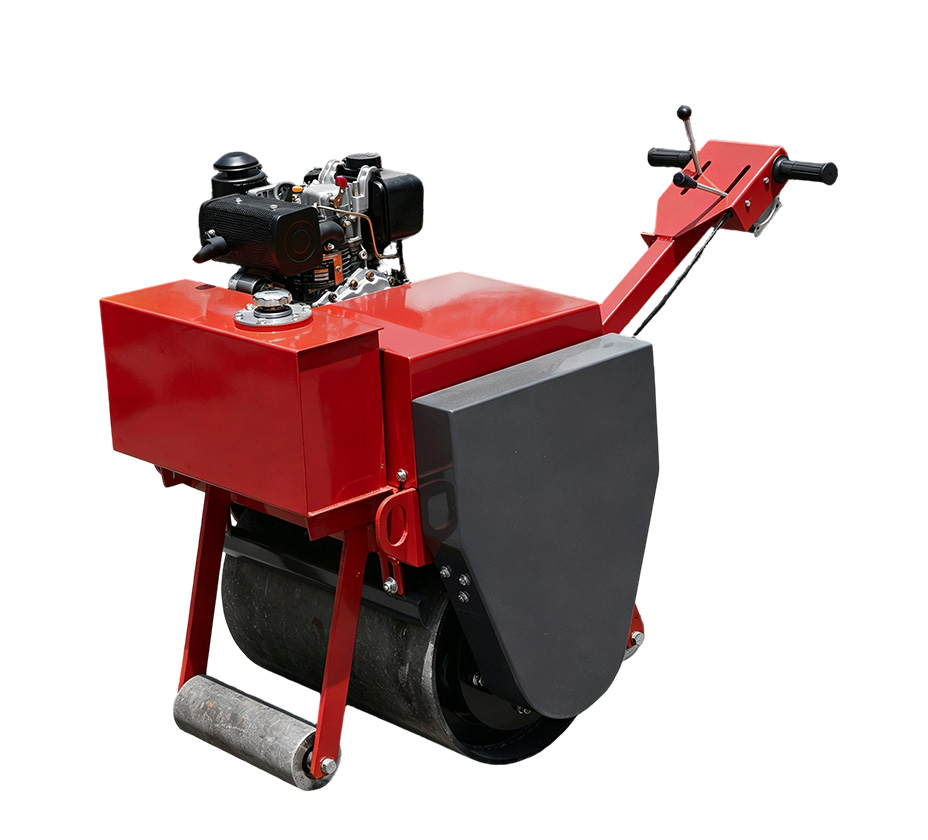

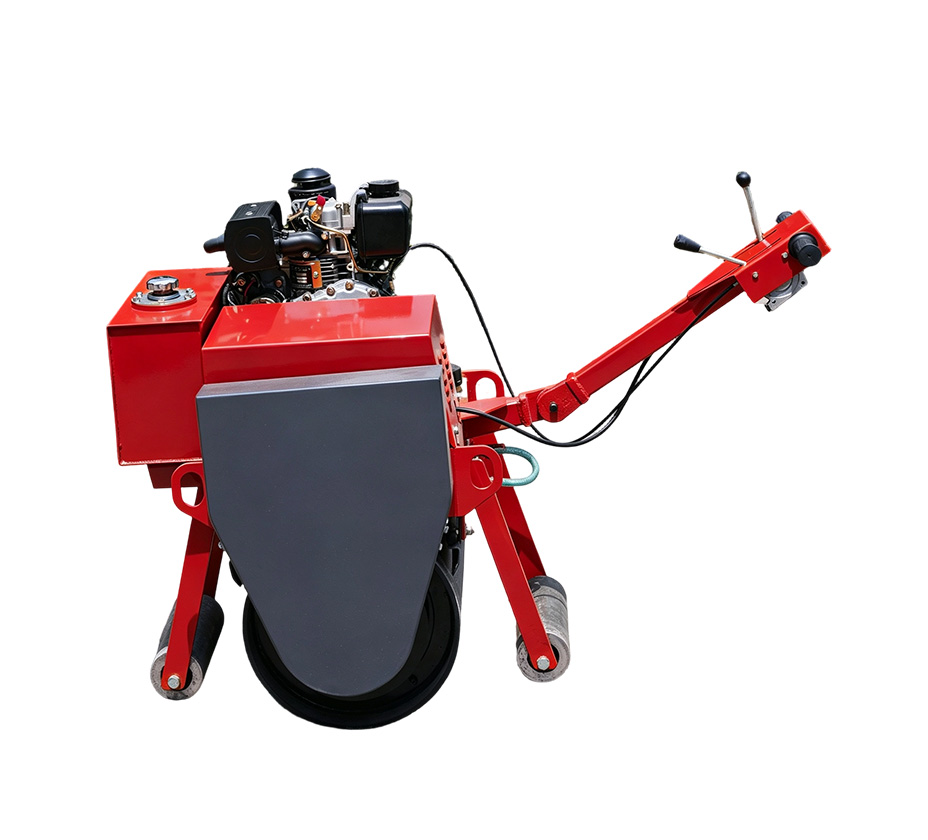

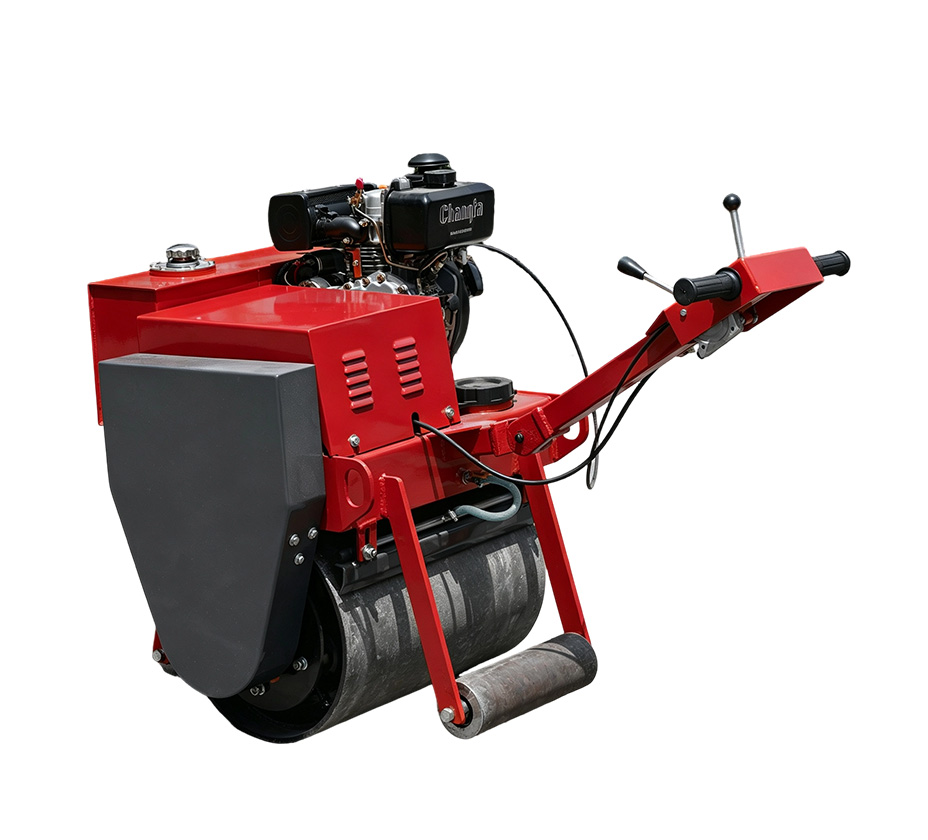

Vibratory Roller FR-600

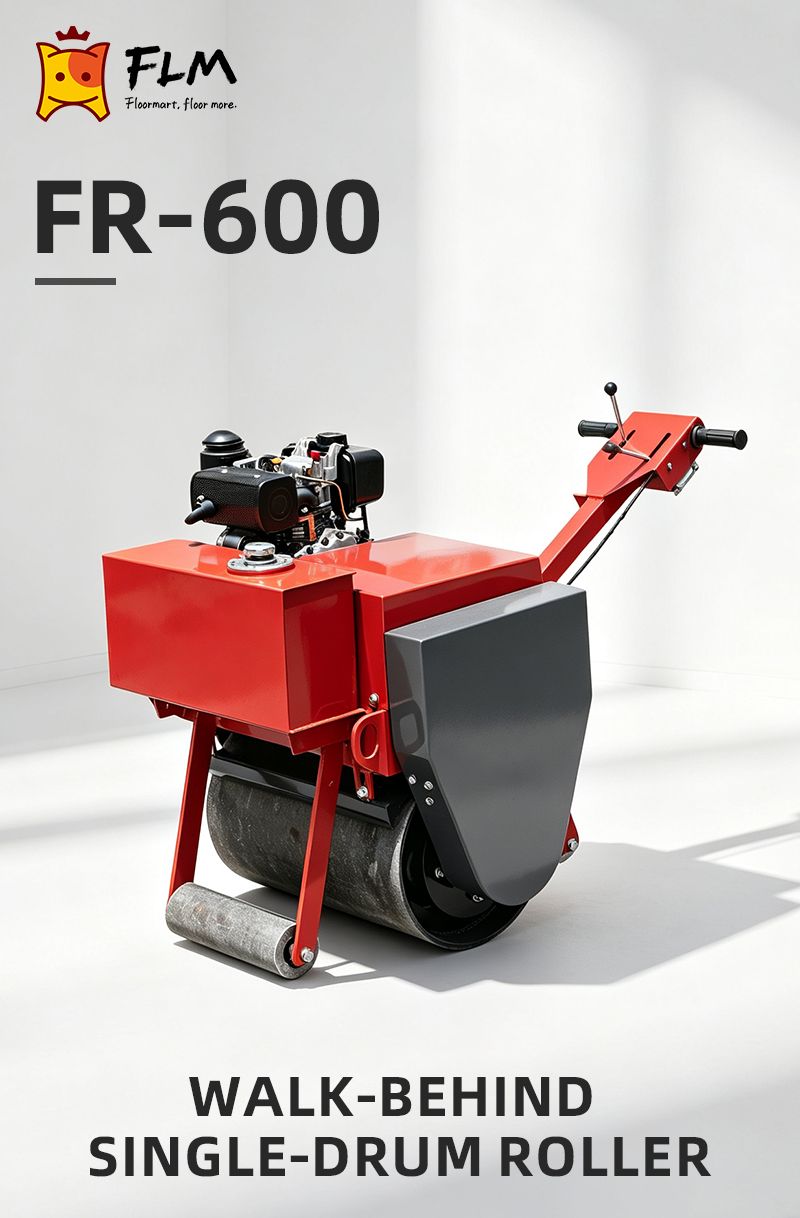

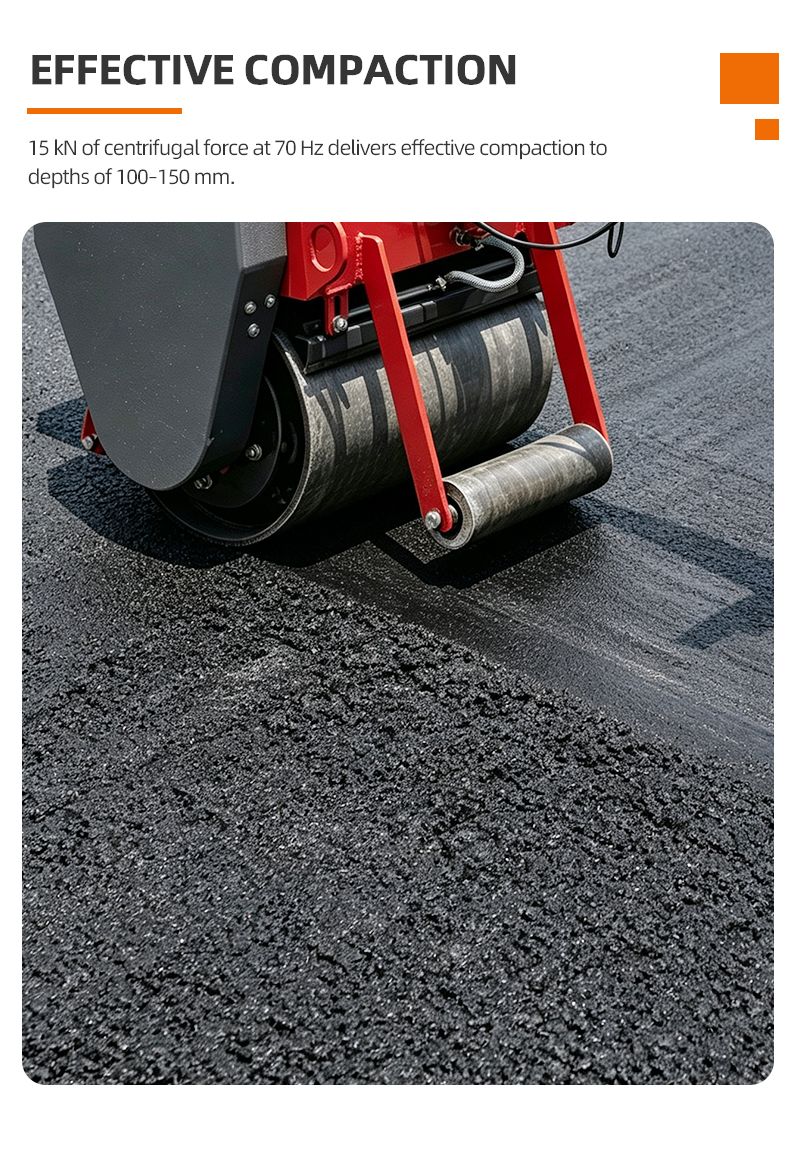

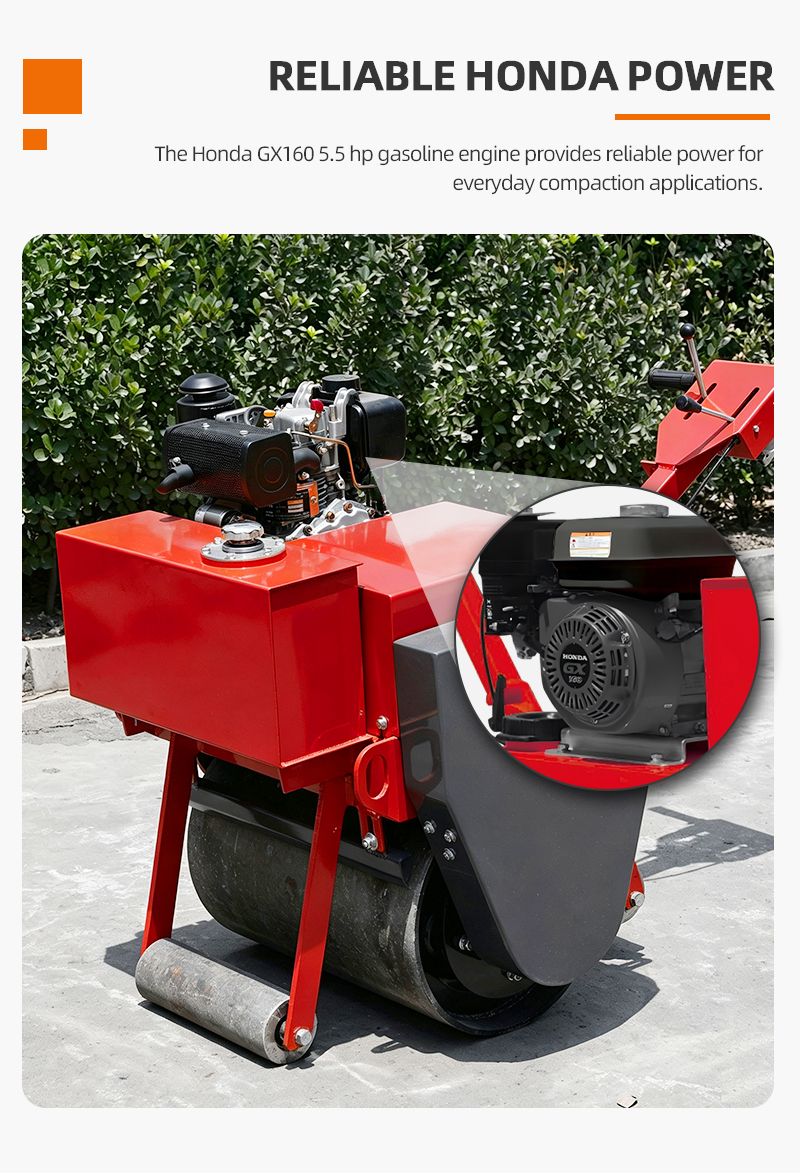

The FR-600 is a walk-behind single-drum roller powered by a Honda GX160 5.5HP gasoline engine, providing reliable power for everyday compaction applications. It delivers 15kN of centrifugal force at 70Hz, achieving effective compaction to depths of 100-150mm.

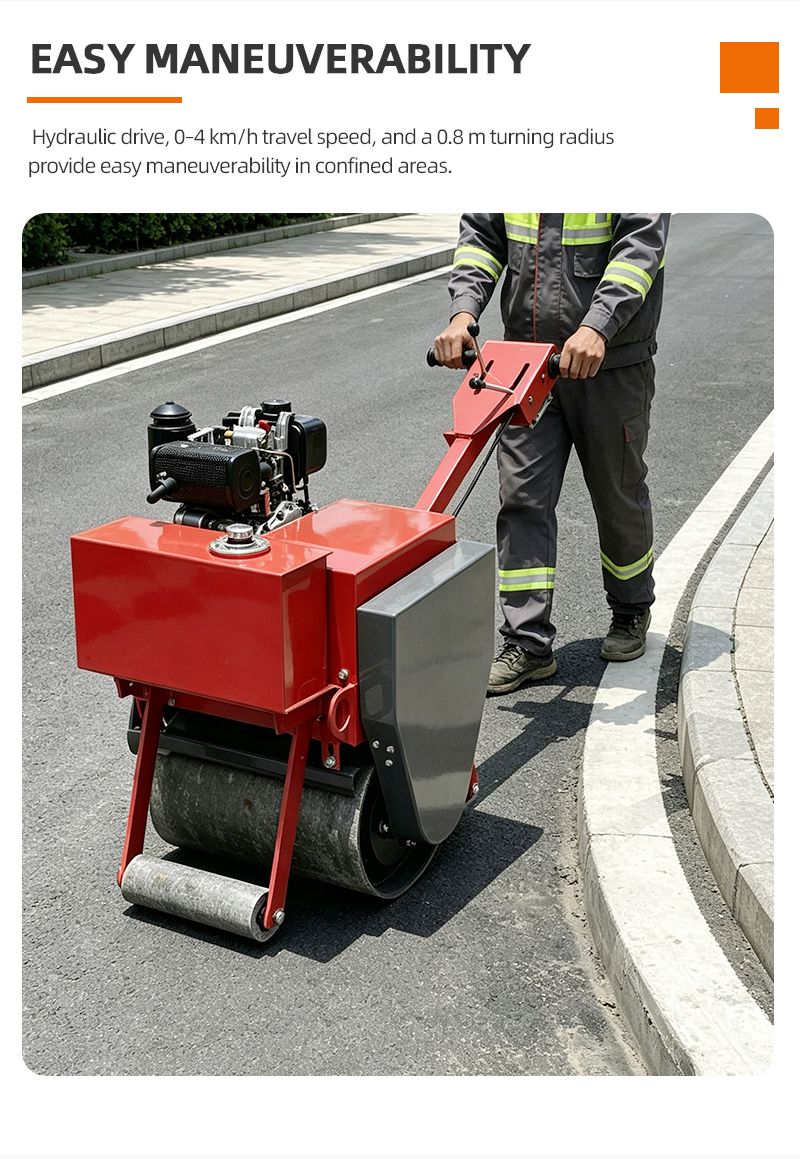

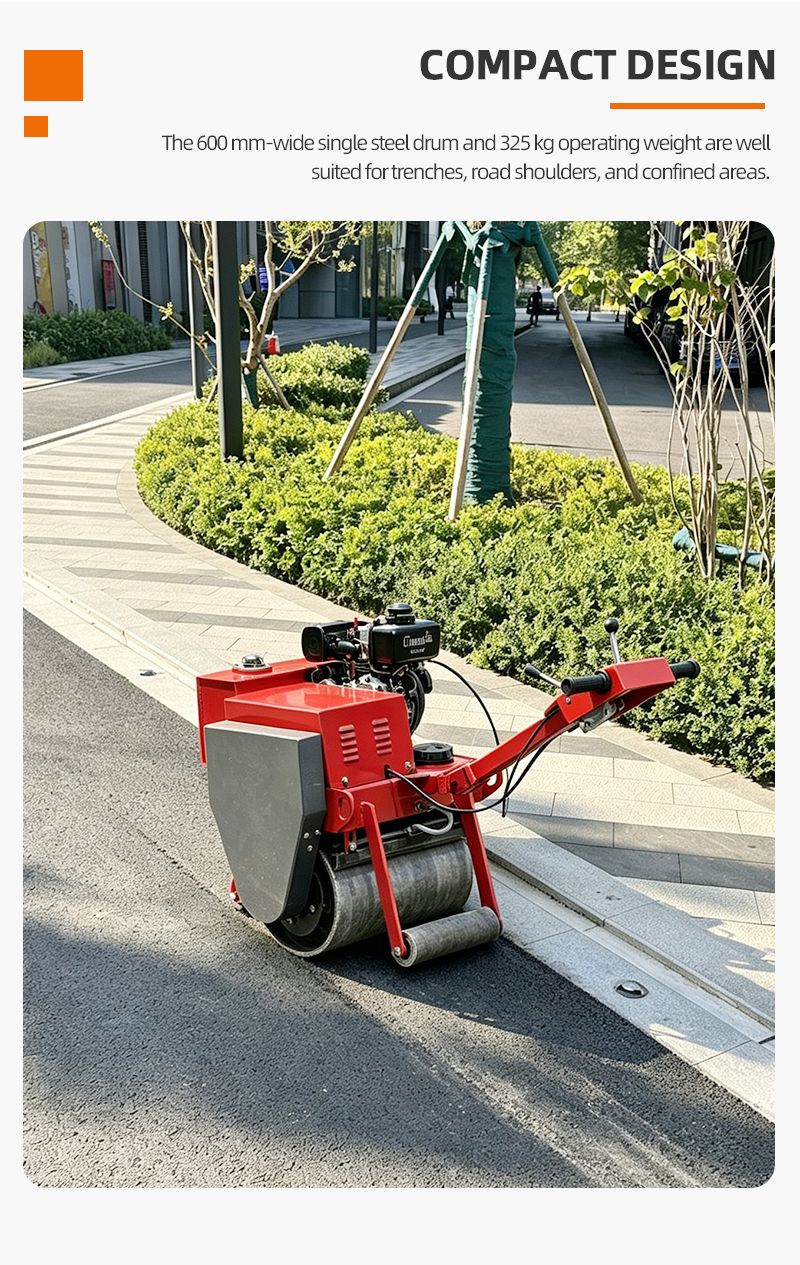

With a 600mm-wide single steel drum and 325kg operating weight, the FR-600 is well suited for trenches, road shoulders, and confined areas. Its hydraulic drive, 0-4 km/h travel speed, and 0.8m turning radius provide easy maneuverability in tight spaces. The integrated 17L water tank supports continuous operation on asphalt and soil compaction jobs.
Need help selecting the right setup?
Vibratory Roller FR-600
Configuration Options
Only keep the variants that really affect quote and selection.
* Required options
Product Overview
Vibratory Roller FR-600
The FR-600 is a walk-behind single-drum roller powered by a Honda GX160 5.5HP gasoline engine. With a 600mm drum width and 325kg operating weight, it delivers effective compaction to depths of 100-150mm. Its compact design and hydraulic drive provide easy maneuverability in trenches, road shoulders, and confined areas.
- Product ID
- FR-600
- Selected
- FR-600
- Category
- Vibratory Roller
- Model
- FR-600

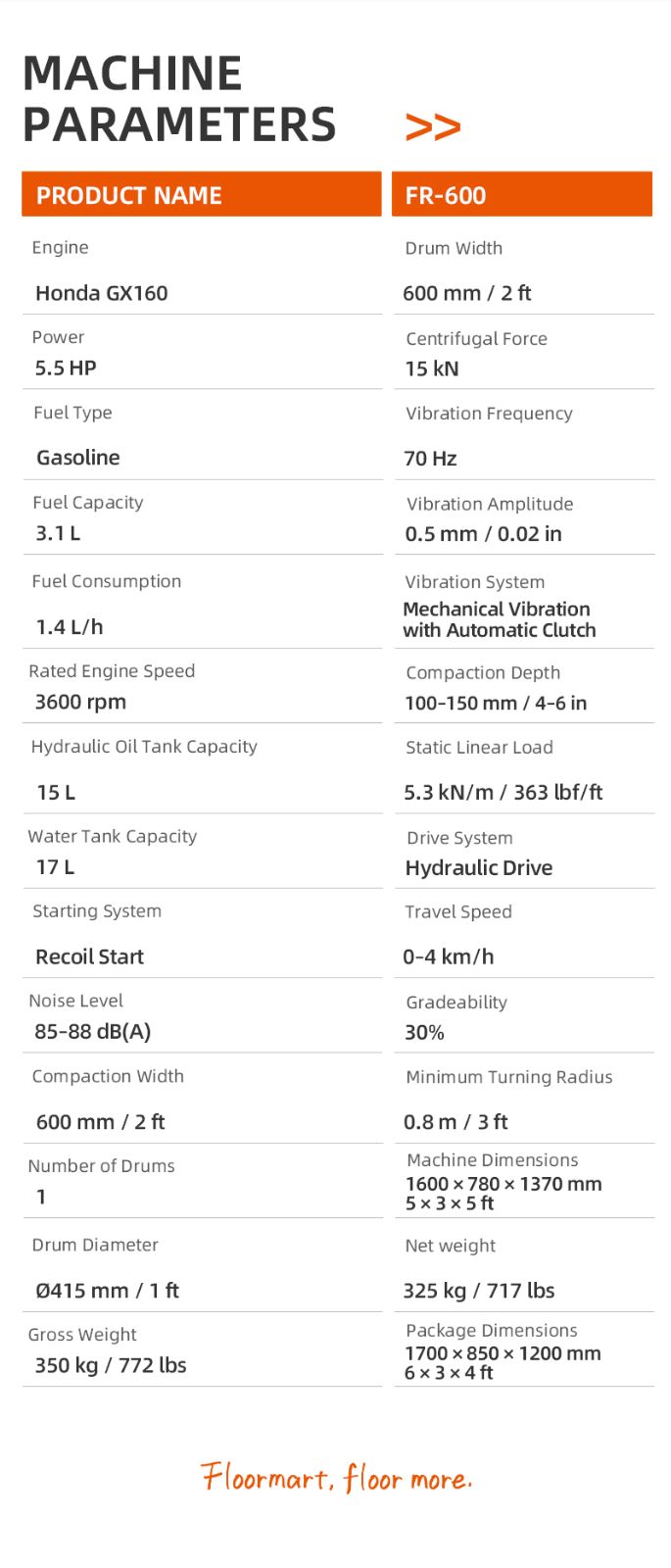

Technical Parameters
Current selected specification
- Model
- FR-600
- Engine
- Honda GX160
- Drum Width
- 600 mm /2 ft
- Power
- 5.5 HP
- CentrifugalForce
- 15 kN
Note: Product specifications may change with continuous upgrades. Please refer to the final sales proposal.
