Industrial Product

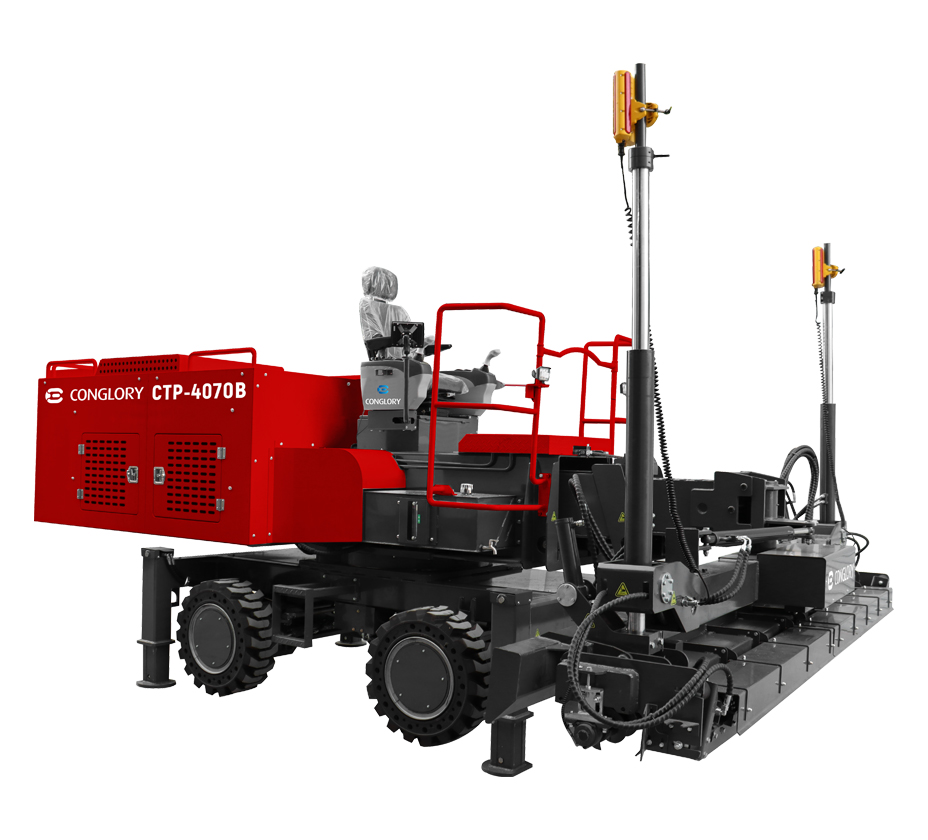

Laser Screed Machine CTP-4070B

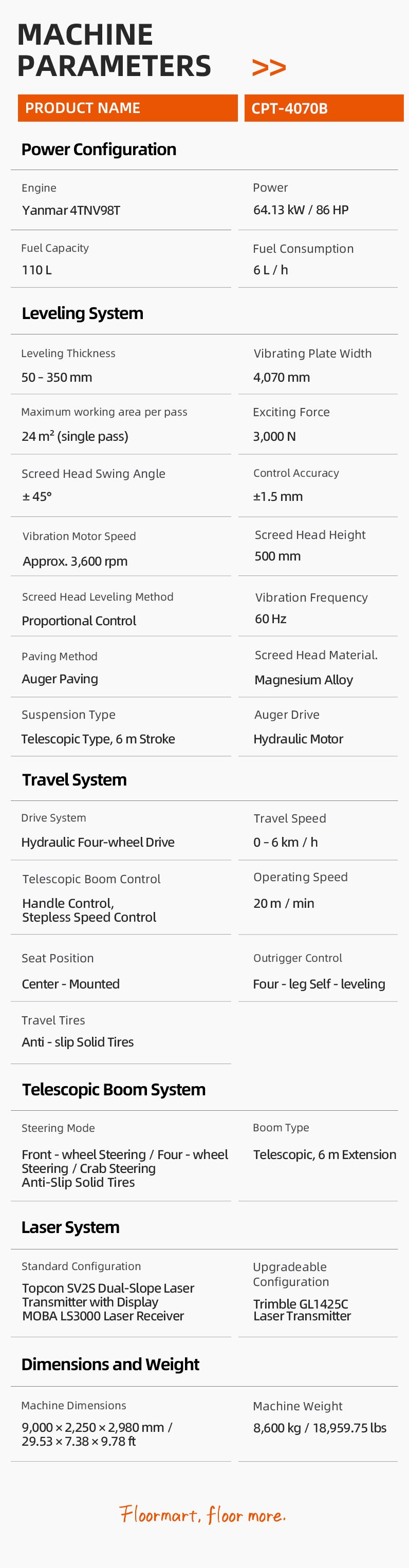

MODELCTP-4070B

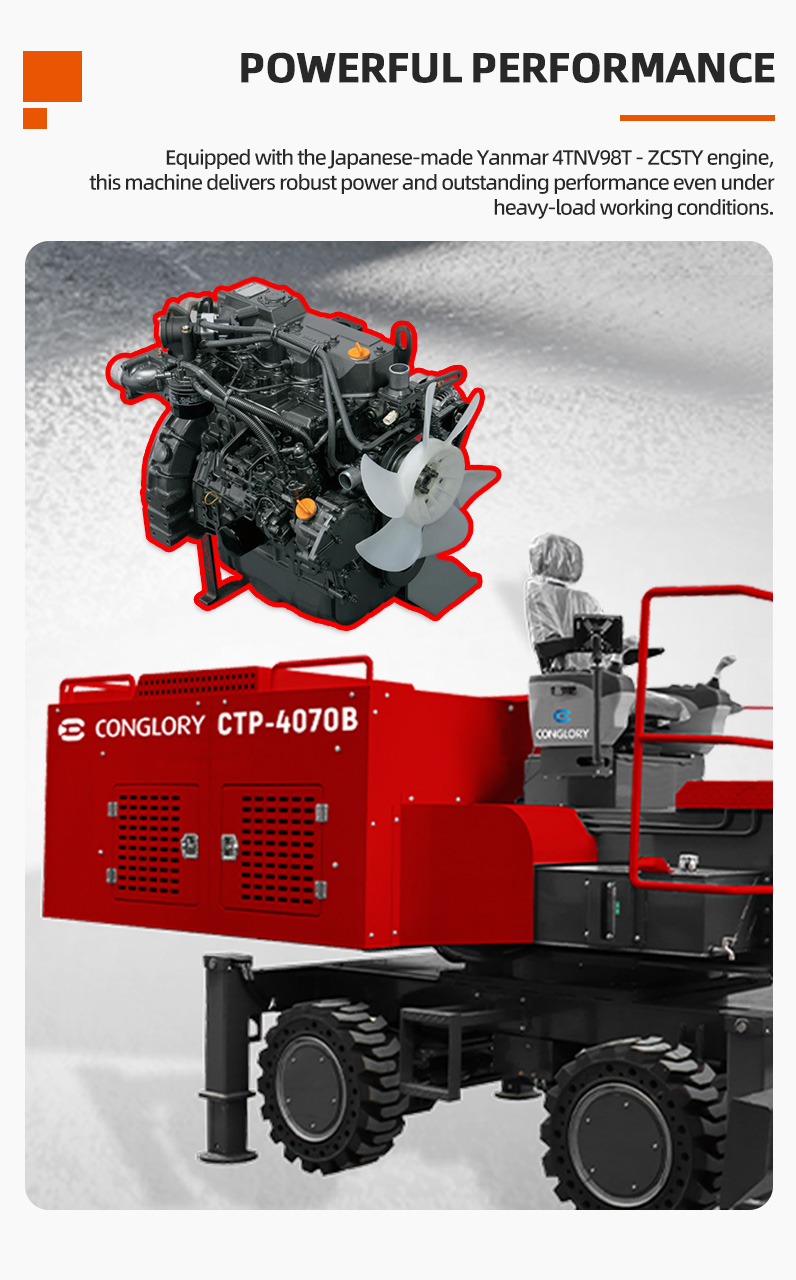

EngineYanmar 4TNV98T

Power86 HP

Fuel Capacity110 L

Fuel Consumption6 L/h

TransmitterTopcon SV2S Dual-Slope Laser Transmitter with Display

ReceiverMOBA LS3000 Laser Receiver

Upgradeable ConfigurationTrimble GL1425C Laser Transmitter

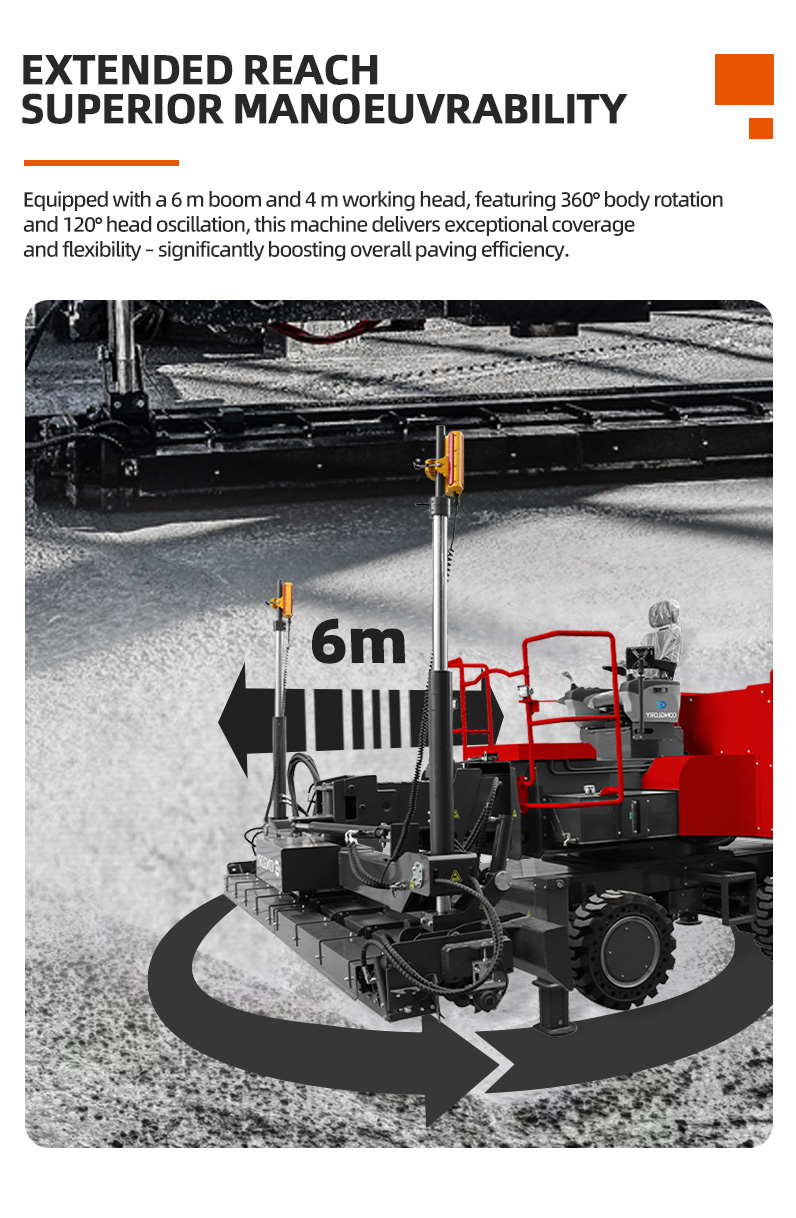

Suspension TypeTelescopic Type, 6 m Stroke

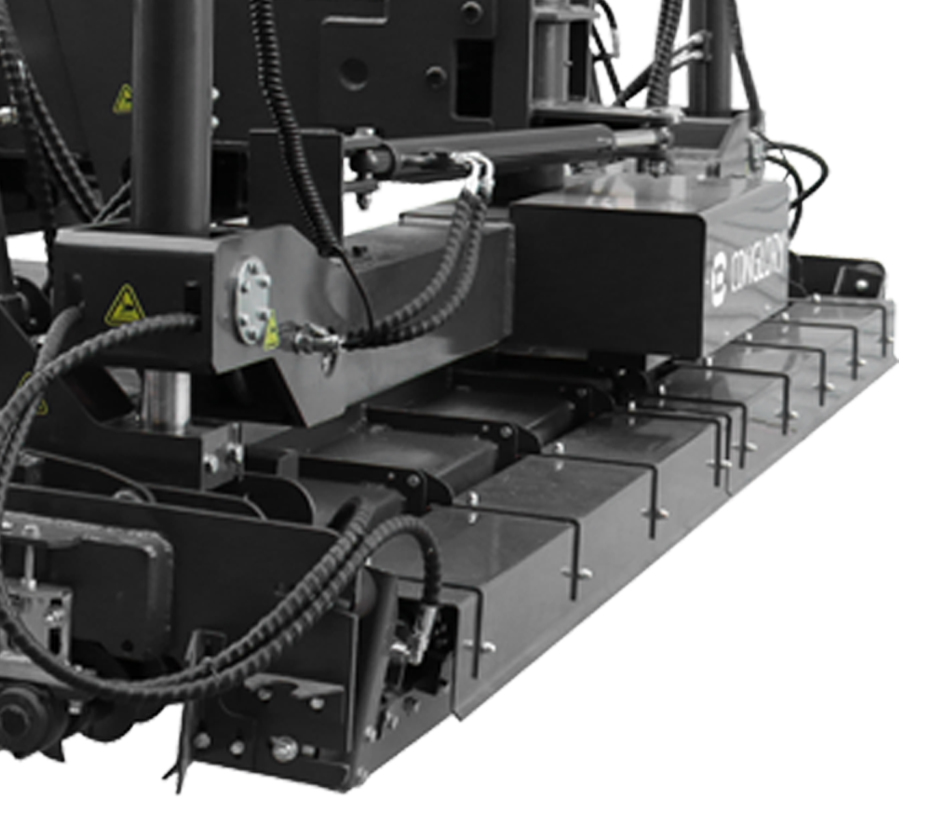

Vibrating Plate Width4070 mm

Leveling Thickness50–350 mm

Screed Head Leveling MethodProportional Control

Exciting Force3000 N

Vibration Frequency60 Hz

Vibration Motor SpeedApprox. 3600 rpm

Screed Head MaterialMagnesium Alloy

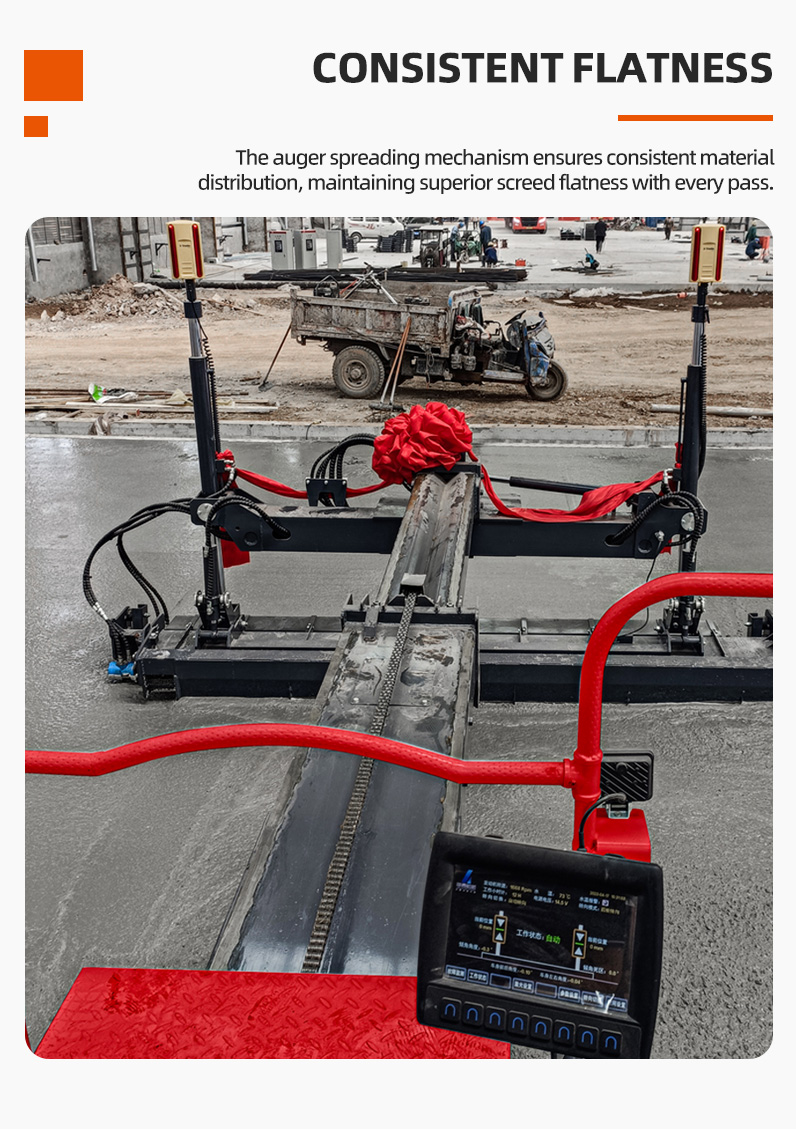

Paving MethodAuger Paving

Auger DriveHydraulic Motor

Screed Head Swing Angle±45°

Screed Head Height500 mm

Control Accuracy±1.5 mm

Drive SystemHydraulic Four-wheel Drive

Steering ModeFront-wheel Steering / Four-wheel Steering / Crab Steering

Travel Speed0–6 km/h

Operating Speed20 m/min

Product Overview

Send us your project requirements and we will recommend a fitting configuration and quote plan.

1 / 6

Only keep the variants that really affect quote and selection.

MODEL

* Required options

Current selected specification

Note: Product specifications may change with continuous upgrades. Please refer to the final sales proposal.
