Concrete Vibrator FCV-1500J/FCV-2200J
Note: Product specifications may change with continuous upgrades. Please refer to the final sales proposal.
Need help selecting the right setup?
Concrete Vibrator FCV-1500J/FCV-2200J
Configuration Options
Only keep the variants that really affect quote and selection.
* Required options
Product Overview
Concrete Vibrator FCV-1500J/FCV-2200J

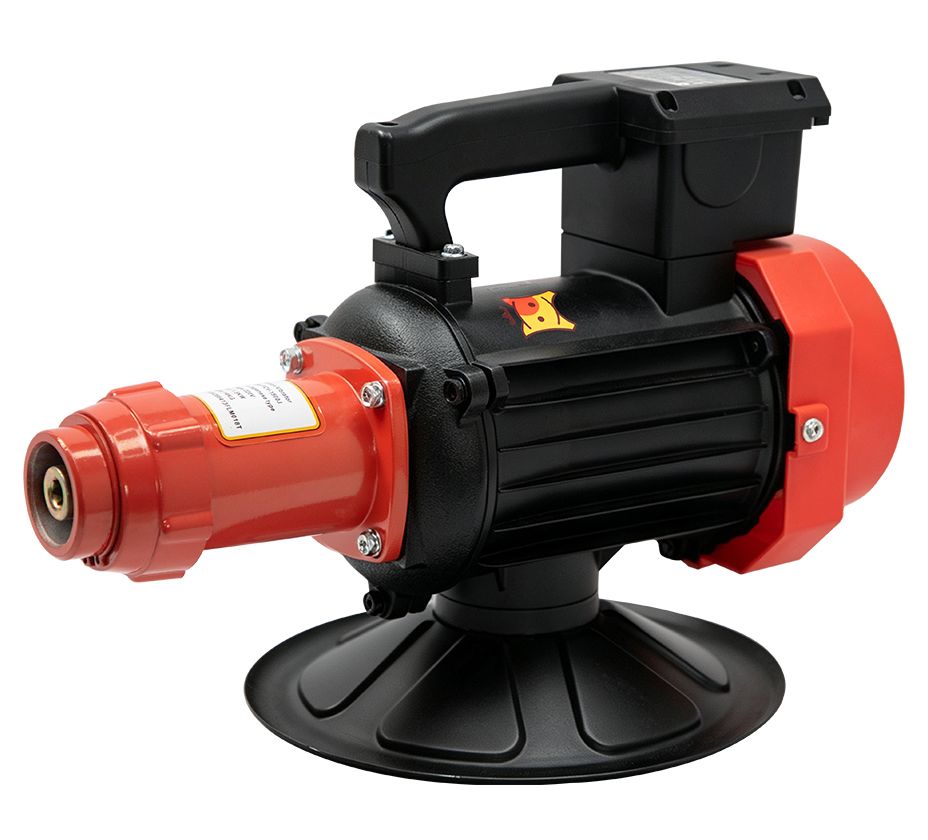

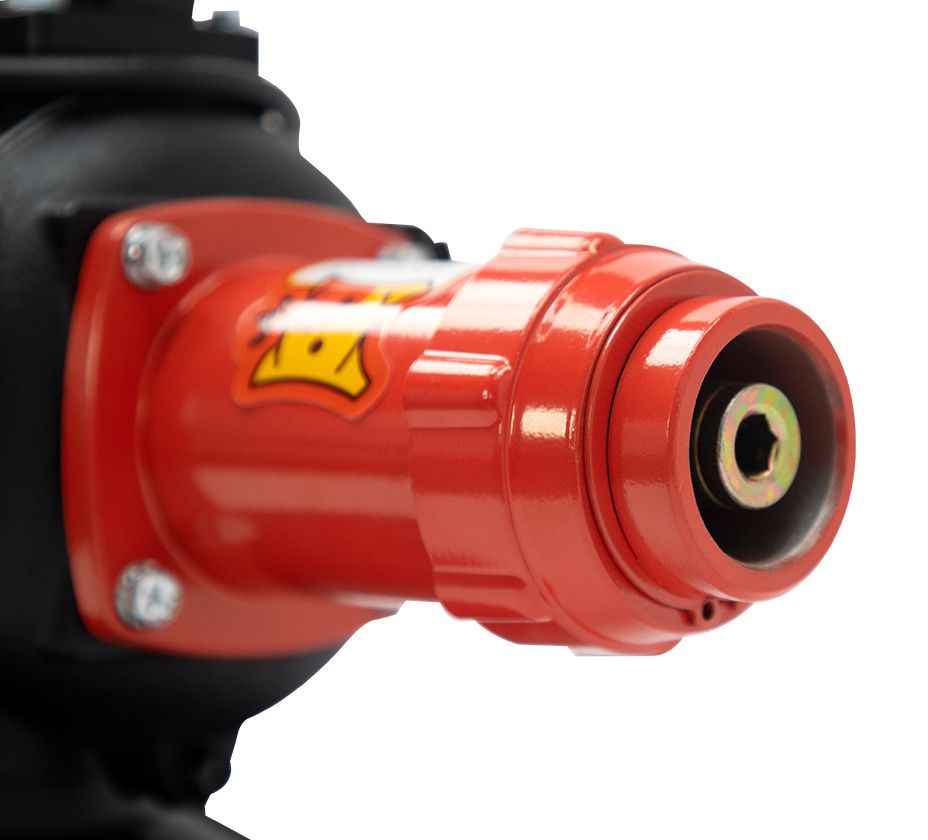

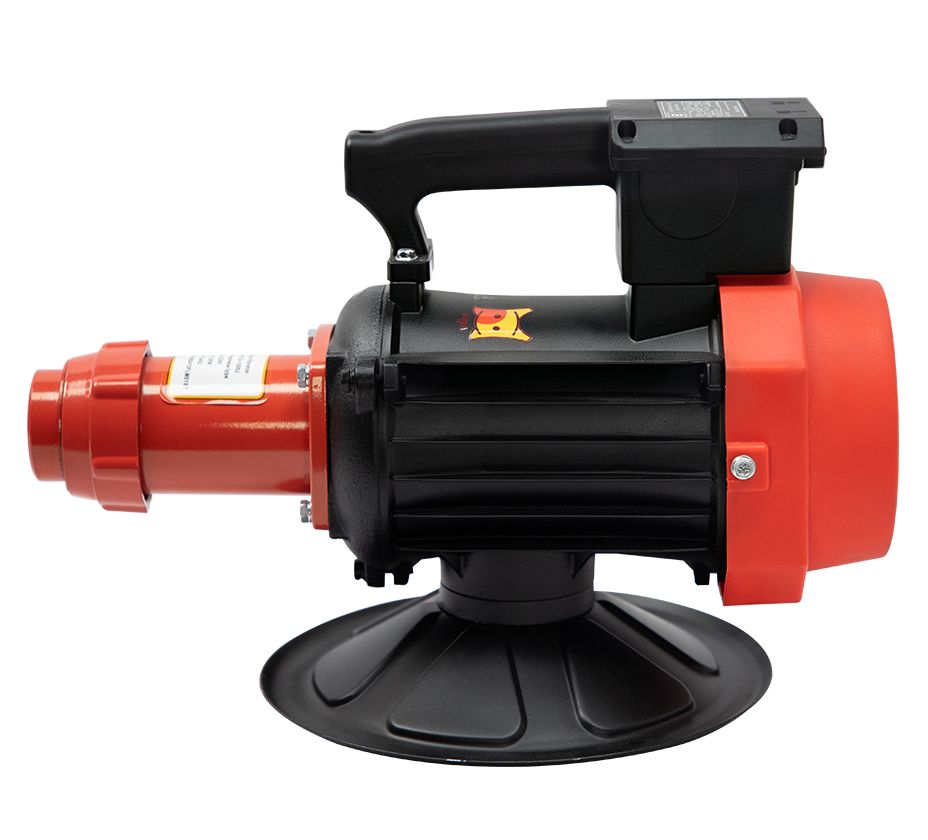

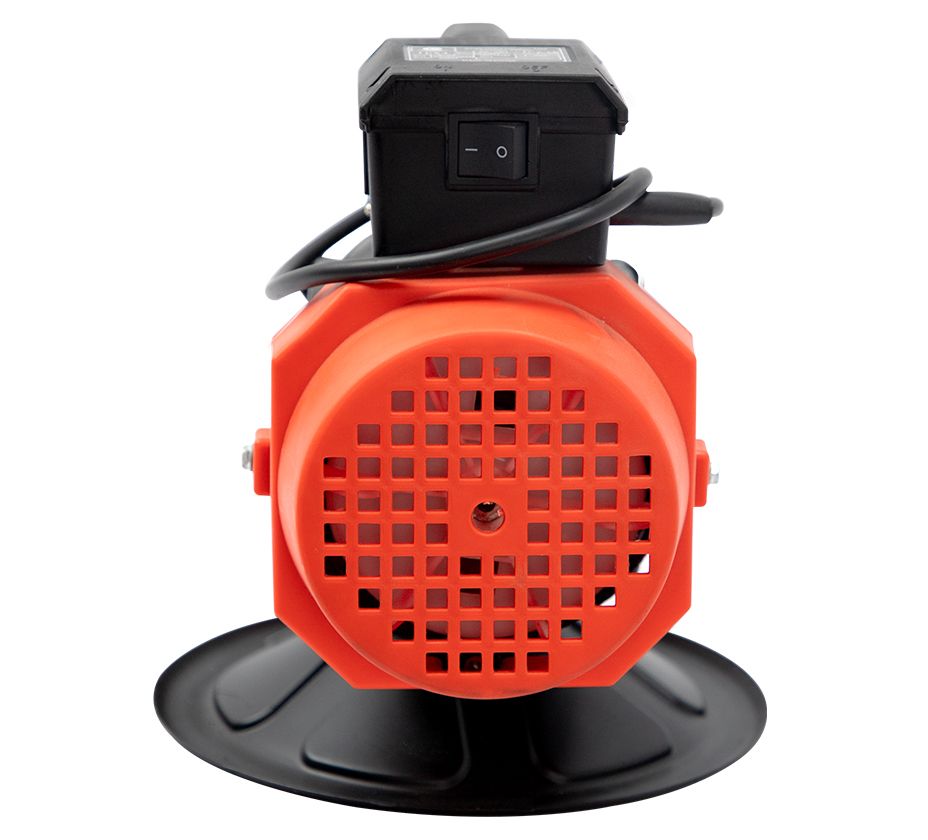

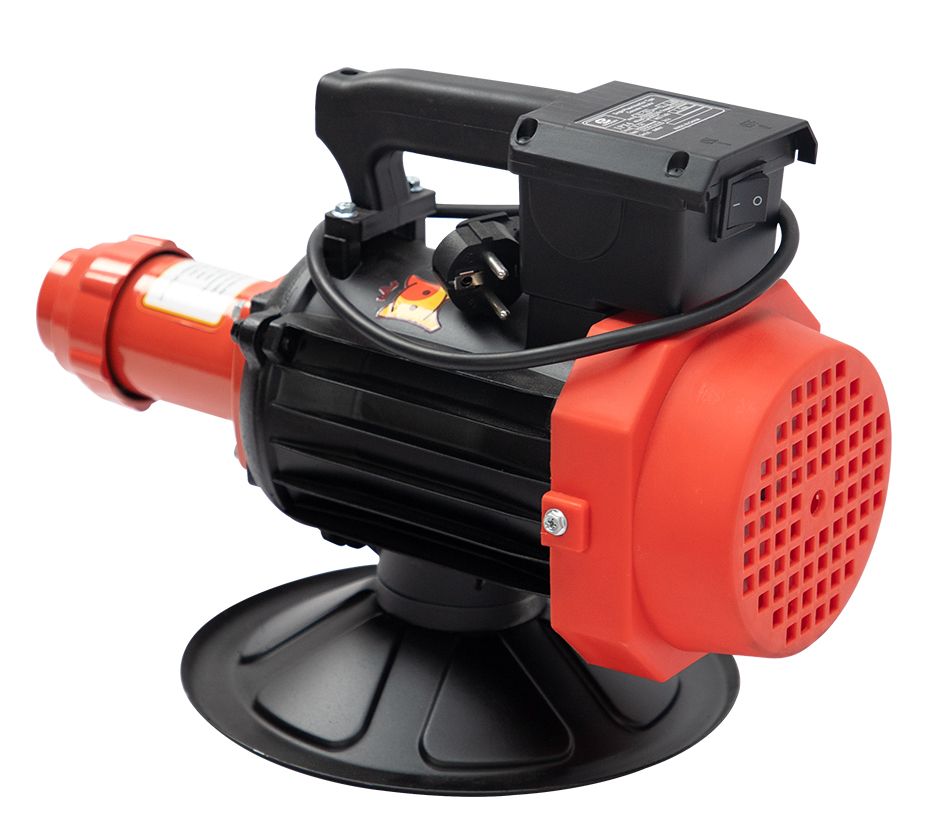

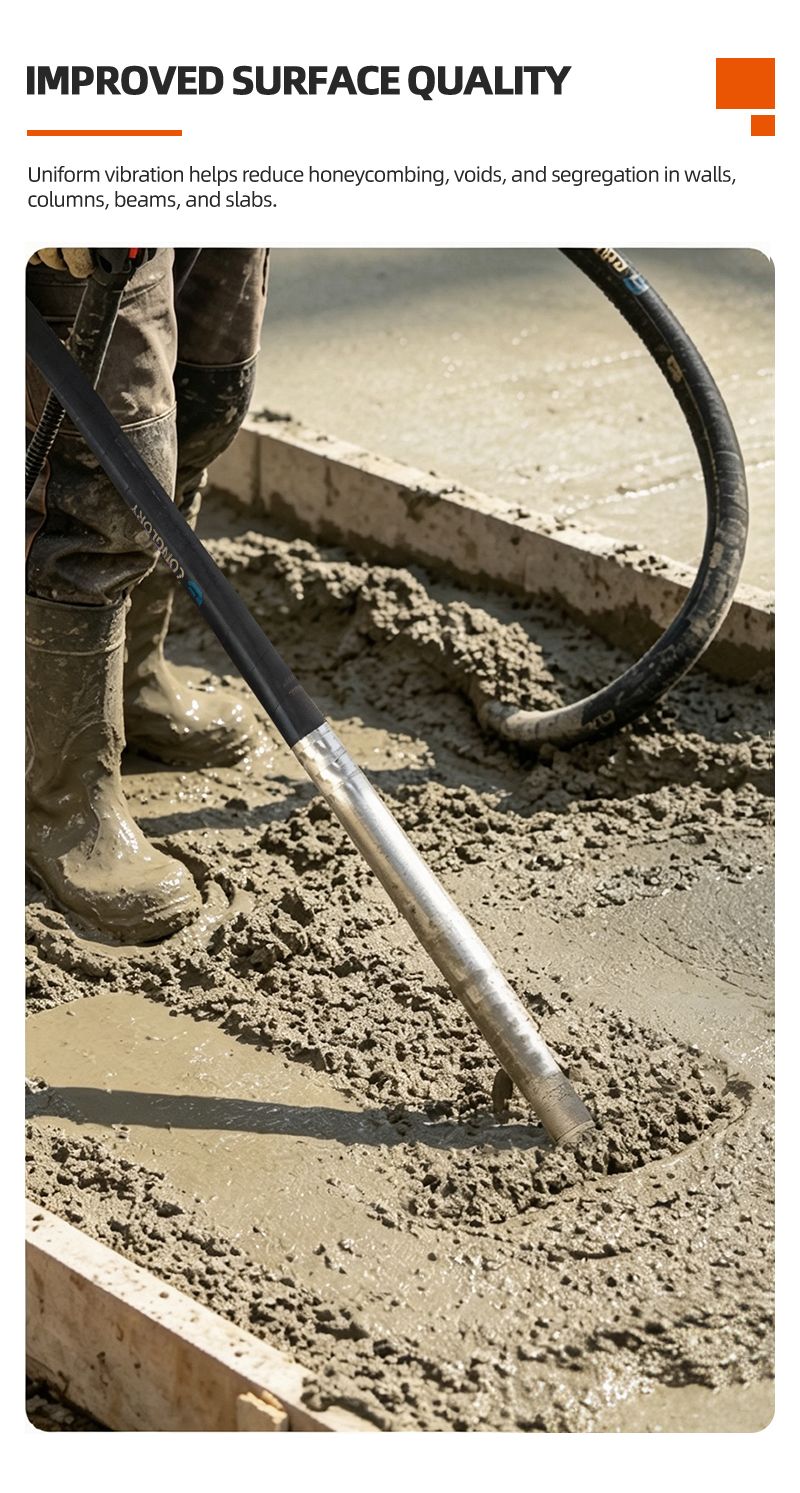

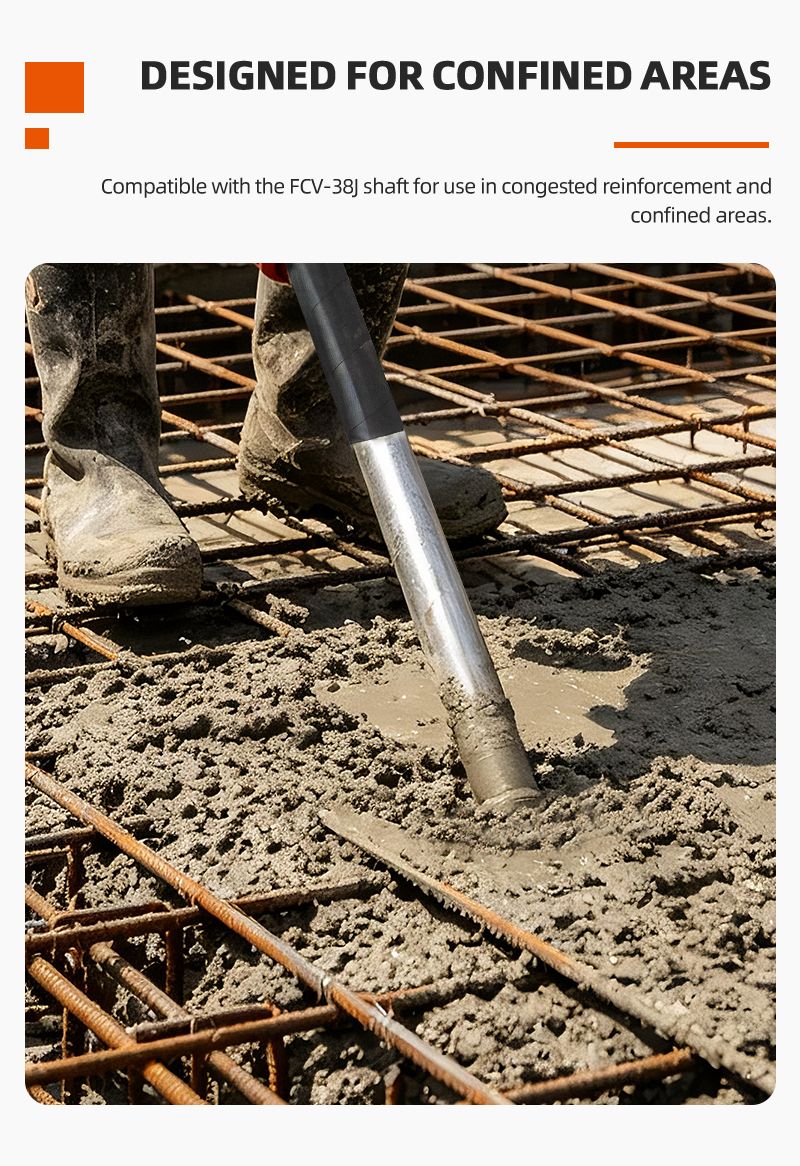

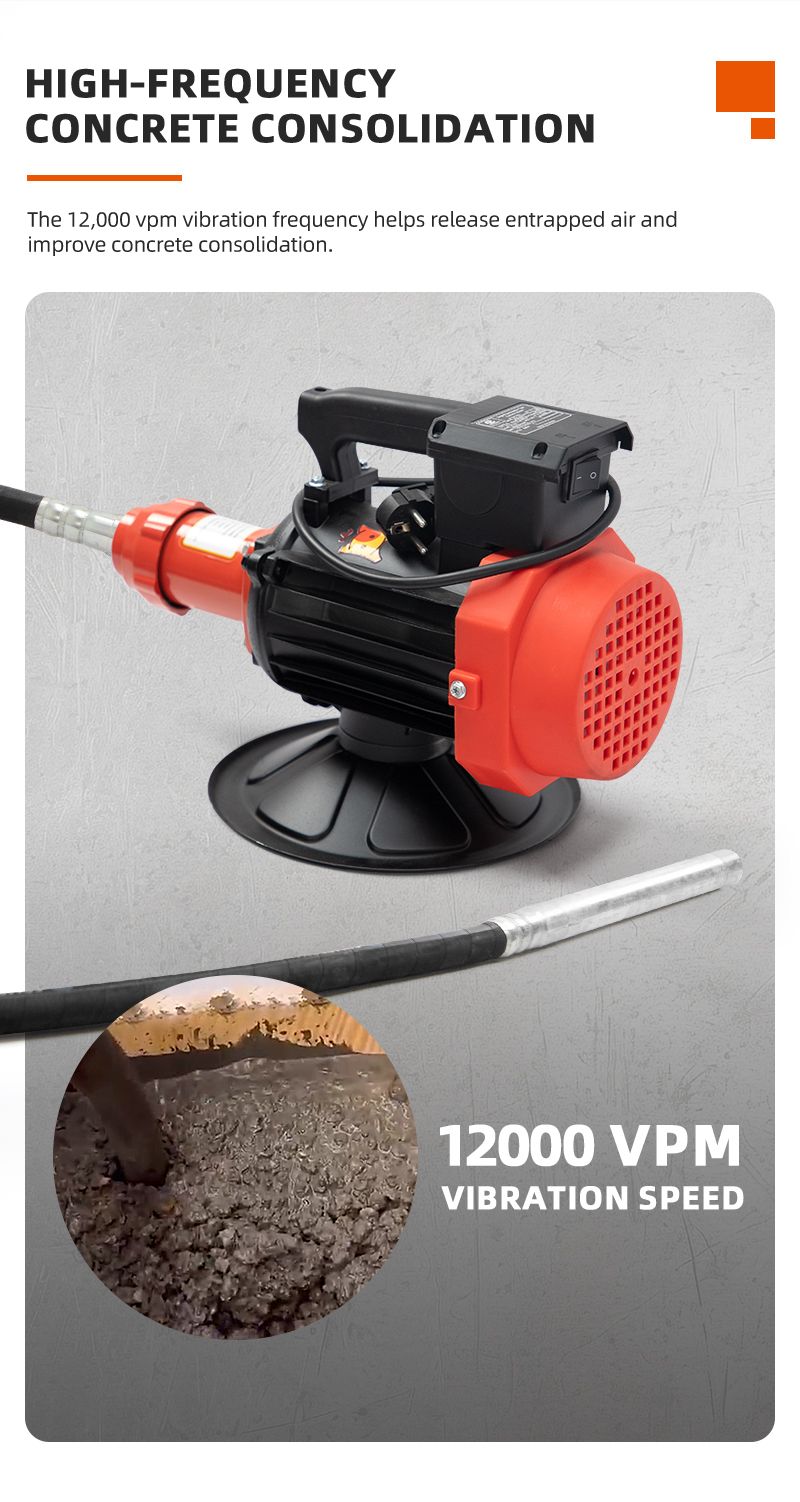

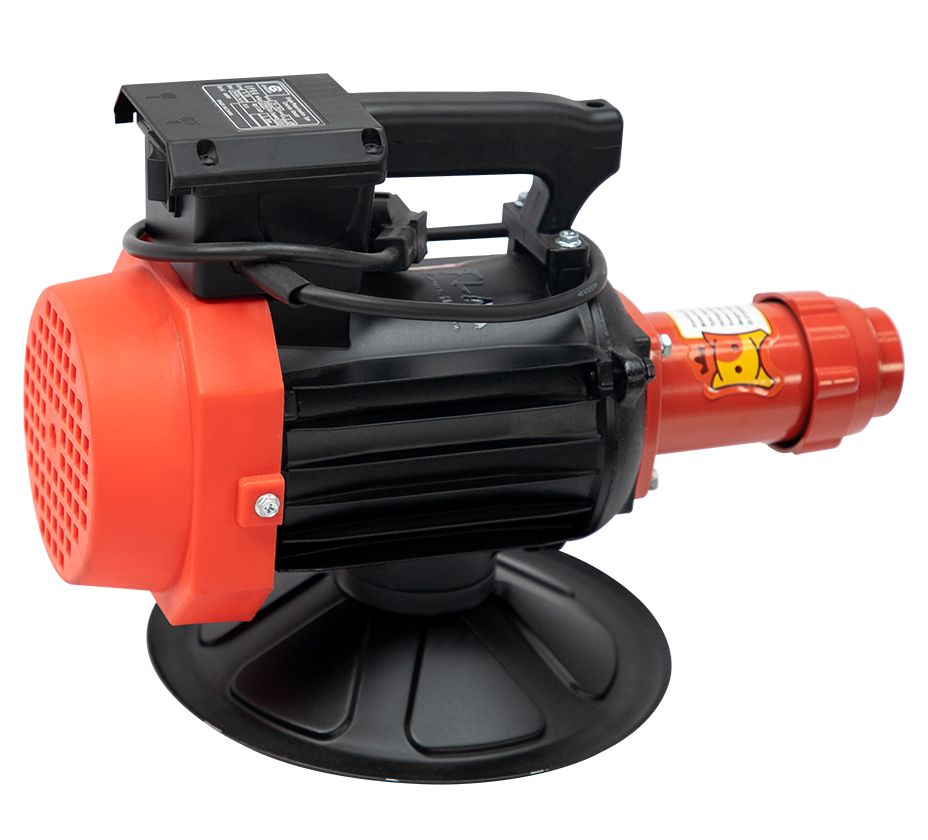

The FCV-1500J/2200J is a Japanese-style insertion concrete vibrator powered by a 1.5kW or 2.2kW AC motor, delivering a high vibration frequency of 12000 VPM to remove entrapped air and improve concrete consolidation. It helps reduce honeycombing, voids, and segregation in walls, columns, beams, and slabs. Compatible with FCV-38J vibrator shafts, it provides access to areas with dense reinforcement and confined spaces. Weighing only 13-14kg with a compact frame (440×235×300mm), it is easy to transport and operate on demanding job sites.
- Product ID
- FCV-1500J
- Selected
- FCV-1500J
- Category
- Concrete Vibrator
- Model
- FCV-1500J

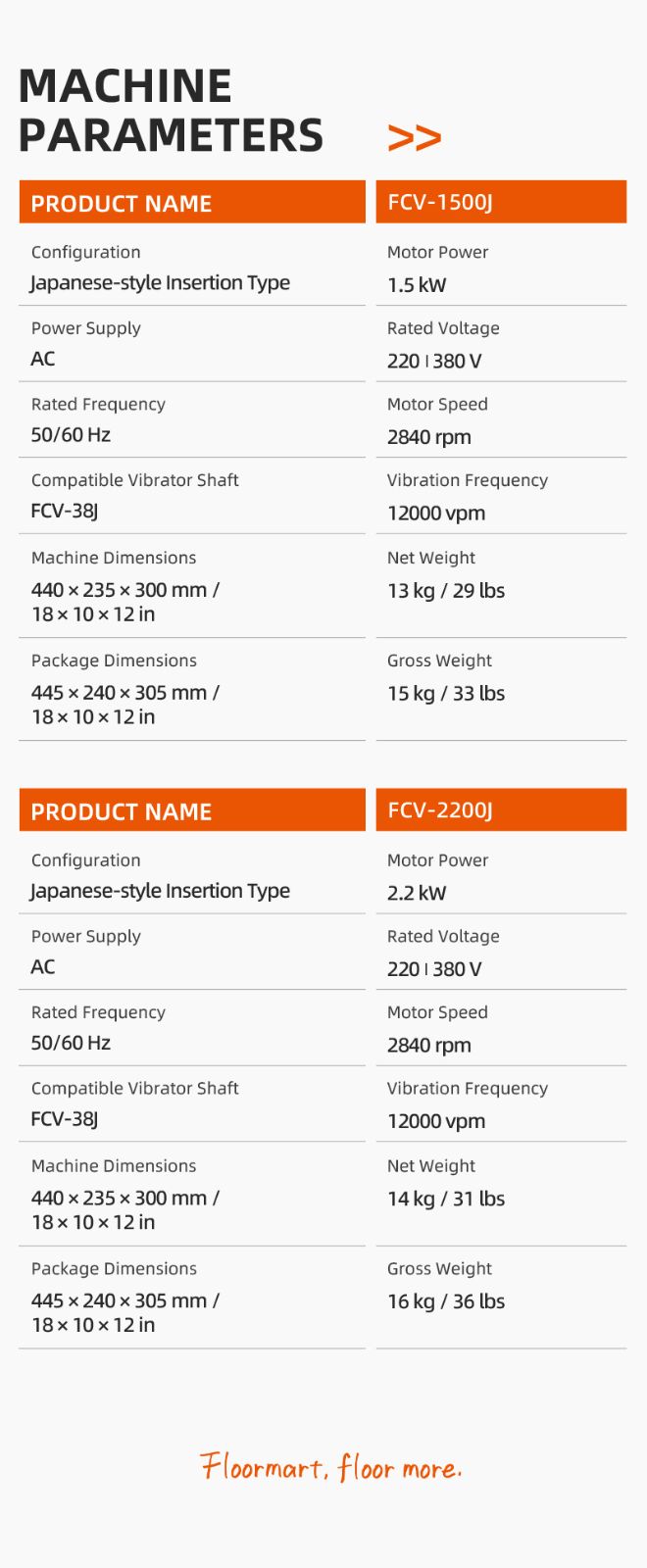

Technical Parameters
Current selected specification
- Model
- FCV-1500J
- Configuration
- Japanese-style Insertion Type
- Motor Power
- 1.5 kW
- Power Supply
- AC
- Rated Voltage
- 220 | 380 V
Note: Product specifications may change with continuous upgrades. Please refer to the final sales proposal.
